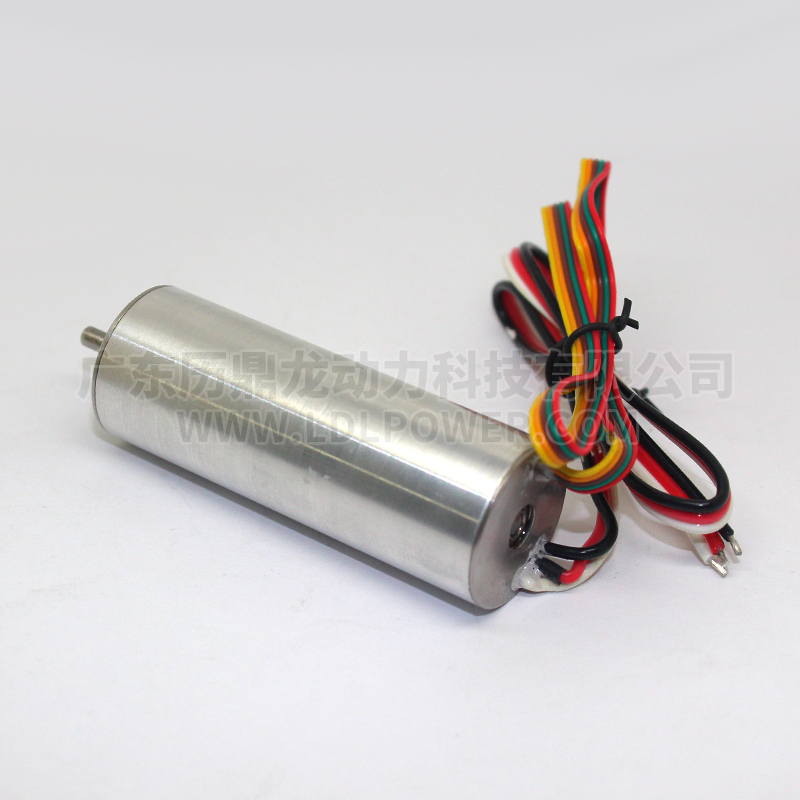

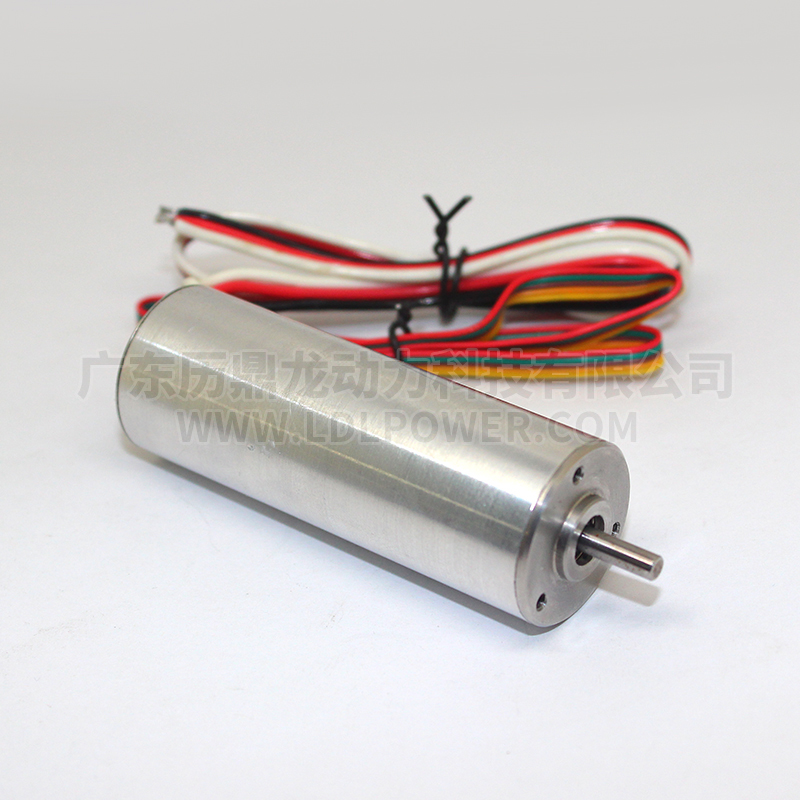

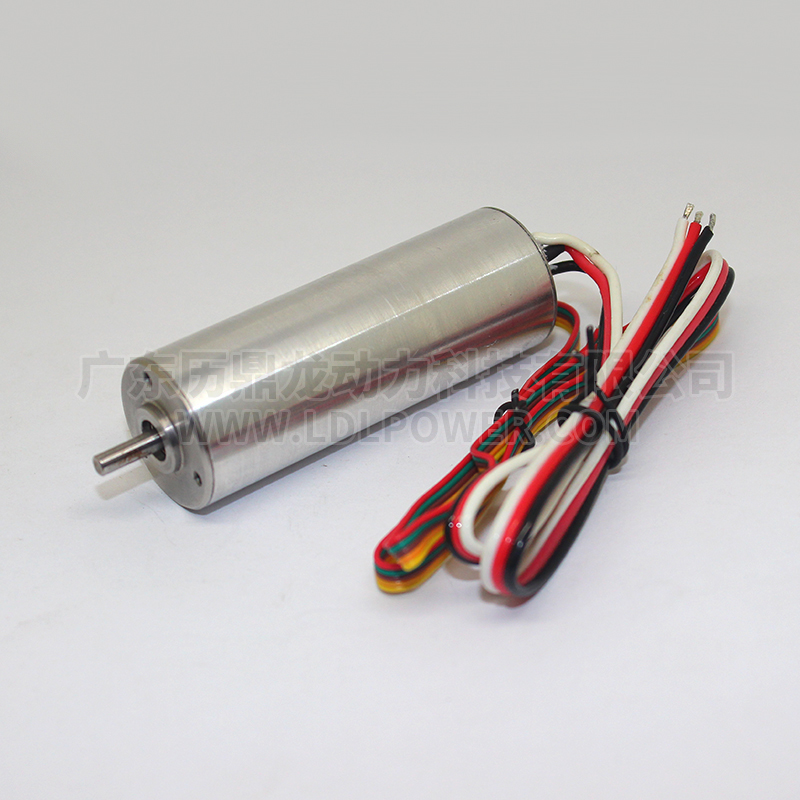

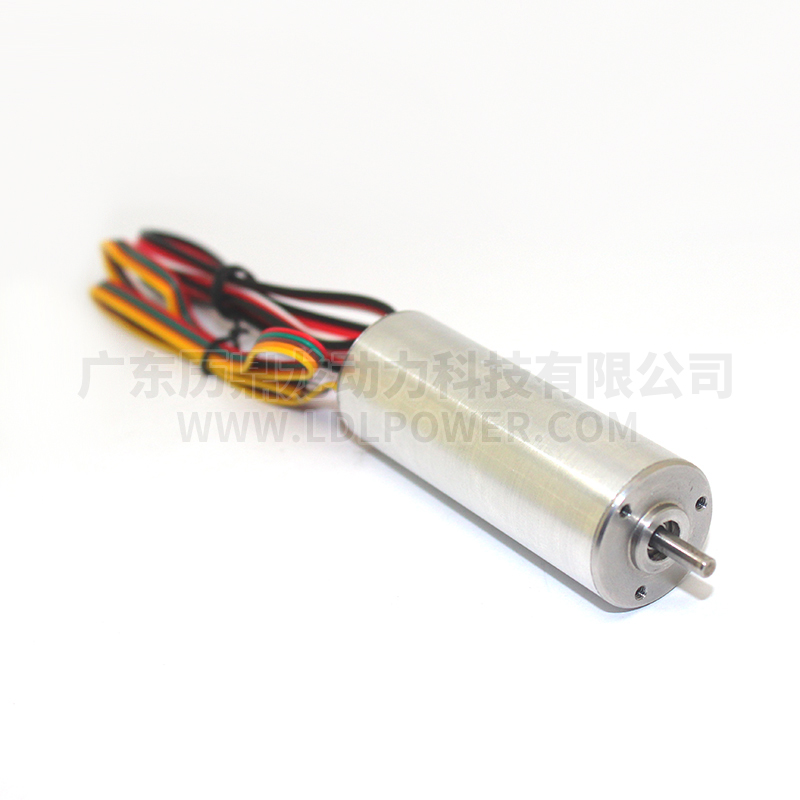

Description
The 2260 brushless motor for medical ventilator is a slotless brushless DC (BLDC) motor specifically designed for scenarios requiring high rotational speeds and high precision. It adopts an innovative magnetization structure with a 2-pole thickness, supports a wide voltage input range of 12-24V, and combines high efficiency with a compact design. It is widely used in high-demand fields such as model aircraft power systems, industrial automation equipment, and miniature robots.
Performance Parameters
Rotation Direction: Counterclockwise (CCW), tested at a voltage of 24V.
No-load Performance: The no-load rotational speed is 43500 rpm, and the no-load current is 0.6A.
Stall Performance: The stall torque is 448 mN.m, and the stall current is 92A.
Maximum Efficiency: When the efficiency is 77.5%, the torque is 22.4 mN.m, and the rotational speed is 41325 rpm.
Maximum Power Output: At the maximum of 96.93W, the torque is 224.0 mN.m, and the rotational speed is 21750 rpm.
No-load Rotational Speed: 43500±5% rpm.
No-load Current: Up to 1.0A.
Stall Torque: Up to 448 mN.m.
Stall Current: 92A.
Maximum Input Power (24V): 500W.
Structural Features
Rotor Structure: High-performance rare earth permanent magnet materials are used, which can generate a strong magnetic field to improve the torque output and efficiency of the motor.
Stator Structure: The stator is made by laminating high-quality silicon steel sheets, reducing core losses and improving the efficiency of the motor.
Slotless Design: This motor adopts a slotless stator design. This design can reduce iron losses and cogging effects during the operation of the motor, thereby improving the efficiency and smooth operation of the motor.
Hall Sensor Integration: The 2260 brushless motor for medical ventilator is equipped with Hall effect sensors to detect the position of the rotor for precise electronic commutation control.
Efficient Heat Dissipation Design: The motor housing is designed with a special heat dissipation structure, such as heat sinks or heat dissipation holes, to improve the heat dissipation efficiency and ensure that the motor will not overheat during high-load and long-term operation.
Lightweight Design: On the premise of ensuring the performance of the motor, the 2260 brushless motor for medical ventilator achieves the goal of lightweight through optimized design and material selection.
Application Fields
Model Aircraft and Drones: As the core of propeller drive, it supports high-speed response and explosive power output.
Industrial Automation: Drives miniature pumps, precision cooling fans, or robotic arm joints, adapting to high rotational speed requirements.
Service Robots: Used for the wheels of mobile chassis and servo steering systems, taking into account lightweight and torque density.
Power Tools: Such as small cutting machines and high-speed grinding equipment, providing instantaneous overload capacity.
Precautions
Safe Operation: Before using the motor, make sure you understand its technical parameters and installation requirements. Follow safety procedures during operation to avoid electric shock or mechanical injury.
Correct Connection: Ensure that the motor is correctly connected to the power supply and controller. Use appropriate wiring to avoid poor contact or short circuits.
Maintenance: Regularly check the operation of the motor. If you find problems such as abnormal noise, overheating, or unstable rotational speed, stop the machine immediately for inspection. When cleaning, use a dry cloth or a hair dryer to clean it, and avoid using a wet cloth or directly washing it with water.
If you are interested in the 2260 brushless motor for medical ventilator or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:
Tel: +86-769-85228181
Email: chris@x-teamrc.com
1. General The specifications are applicable to Lidinglong motor models BL2260
2. Operating condition
| Item | Specification | Condition remark | |
| 2-1 | Use voltage range | 12~24V DC | |
| 2-2 | Use temperature range | -20 ~ +80°C | No icing, no condensation, no moisture condensation, no chemical corrosion |
| 2-3 | Use humidity range | 40% ~ 85%RH | No moisture condensation, no chemical corrosion |
3. Measuring condition
| Item | Specification | Condition remark | |
| 3-1 | Temperature | +5 ~ +35°C | Tested at normal temperature and humidity, if there is any doubt about the results, the test data at 20 ± 3 °C shall prevail |
| 3-2 | Humidity | (65±20%)RH | |
| 3-3 | Test voltage | 7.5V | DC |
| 3-4 | Test drive board | Skyrc motor tester | Skyrc motor tester |
| 3-5 | Position | Axial vertically downward | |
4. Mechanical specification
| Item | Specification | Condition remark | |

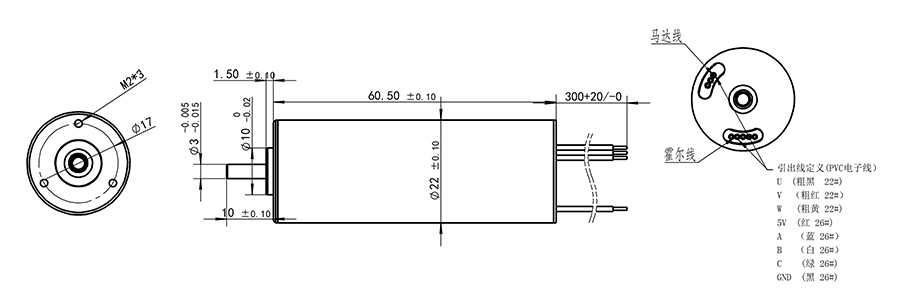

| 4-1 | Dimensions | Refer to the dimension drawing | Please refer to the outline drawing of the motor for details. |
| 4-2 | Weight | 160g | Only for products confirmed in this specification |
| 4-3 | Appearance and color | Front center and back black | Visual inspection |
| 4-4 | Hall line definition | Refer to the dimension drawing | Please refer to the outline drawing of the motor for details. |
| 4-5 | Motor wire length | Refer to the dimension drawing | Please refer to the outline drawing of the motor for details. |
| 4-6 | Motor shaft diameter length | Diameter 3.0mm length 10mm | Please refer to the outline drawing of the motor for details. |
| 4-7 | Motor mounting hole | None | |
5. Performance and characteristic
| Item | Specification | Condition remark | |
| 5-1 | Construction | no slot 2 poles
(thickness magnetization) |
|
| 5-2 | Rated voltage | 24V | DC |
| 5-3 | KV value | 1800KV±5% | Test under DC7.4V voltage, use a motor tester to test |
| 5-4 | No-load speed | 43500±5%rpm | Test under DC7.4V voltage, use a motor tester to test |
| 5-5 | No-load current | 1.0A Max | Test under DC7.4V voltage, use a motor tester to test |
| 5-6 | Torque coefficient Kt | 4.8mNm/A | Data for reference |
| 5-7 | Rated torque | 22.5mN.M | Data for reference |
| 5-8 | Rated speed | 43500rpm | Data for reference |
| 5-9 | Rated input current | 5.1A | Data for reference |
| 5-10 | Rated output power | 97W | Data for reference |
| 5-11 | Stall torque | 448mN.M Max | Data for reference |
| 5-12 | Stall current | 92A | Data for reference |
| 5-13 | Maximum input power(24V) | 500W | Data for reference |
| 5-14 | Inductance | ~ mH | LP-Q 1.0kHz |
| 5-15 | Terminal resistance | 260±15m Ω | Data for reference |
| 5-16 | Three-phase resistance difference | ≤10mΩ | Three-phase internal resistance difference |
*Note: All test data are measured by our test environment and test instruments, when the test environment and test instruments change, the test results will have certain deviations, when the decision has a difference
When there is a difference of opinion, our test environment and test equipment shall prevail.

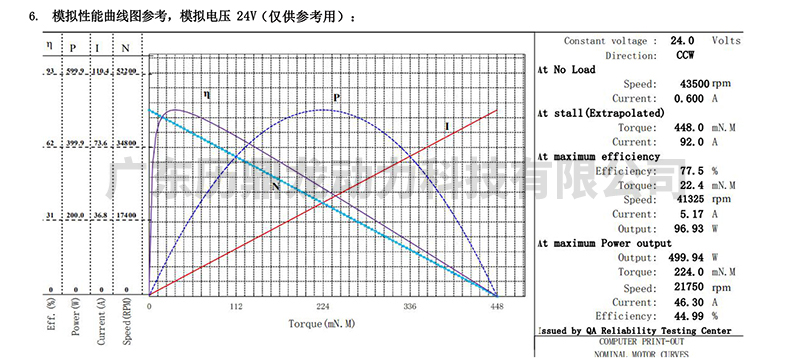

6. Analog performance graph reference, analog voltage 24V (for reference purposes only):
7. Precautions for use
7-1: The motor should be carefully placed during transportation to avoid damage to the motor body and performance caused by collision and knocking.
7-2: The motor should be stored at room temperature and humidity (25℃, 65%RH) under ventilated environment to prevent moisture and chemical corrosion (Note: It is normal to see rust stains on the internal spindle after 6 months, but it is still considered as a qualified product if it does not affect the performance)
7-3: Don’t block the shaft often after connecting the power, and the welding should be finished within 5 seconds to avoid damaging the terminal or wire.
8. Remarks:
8-1:This specification is for engineering sample confirmation. Large-scale production will be executed according to this sample confirmation standard. After sample confirmation, please make sure to sign and return it.
8-2: If the sample crystal is confirmed, if the seal is not answered back within 3 working days, Leeding Dragon receives the user’s order to the user’s order when the default for the sample through confirmation.
9. Product packaging standard:
9-1: Each plate of pearl cotton placed PCS products:
9-2: neatly arranged trays of products are stacked in the packaging box;
9-3: Each box packing total quantity:
9-4: Seal the outer box with sealing tape, and paste the relevant information on the outer box as required by the customer for shipment;
