Description
The 58135 brushless motor for electric surfboard is a high-performance brushless DC (BLDC) motor specifically designed for applications such as model aircraft and drones that require high rotational speeds and large torques. The motor adopts an outrunner structure, making the whole unit more compact, which is highly suitable for devices with strict space requirements. Due to its excellent performance and efficient energy conversion, it has become an ideal choice in many fields. Compared with traditional brushed motors, the 58135 brushless motor for electric surfboard has higher efficiency and a longer service life. Its outrunner design makes the motor small in size and light in weight, especially outstanding in devices with limited space. This motor not only has a high rotational speed but also a large torque, making it very suitable for applications that require rapid response and high-power output.
Performance Parameters
Model: 58135
Coil Insulation Class: Class H, capable of withstanding temperatures up to 180°C
No-load Current: 3.5A (10V/490KV)
Coil Insulation Test: Passed the 500V high-voltage test
Motor Resistance: Only 11mΩ, reducing energy loss
Rotor Balance Standard: Less than 5mg, ensuring smooth operation
Maximum Current: 150A (for 10 seconds)
Overall Dynamic Balance: Less than 10mg
Maximum Power: 10000W (for 10 seconds)
Dustproof and Waterproof Level: IP45
Voltage Withstand Capacity: Up to 66V (18S)

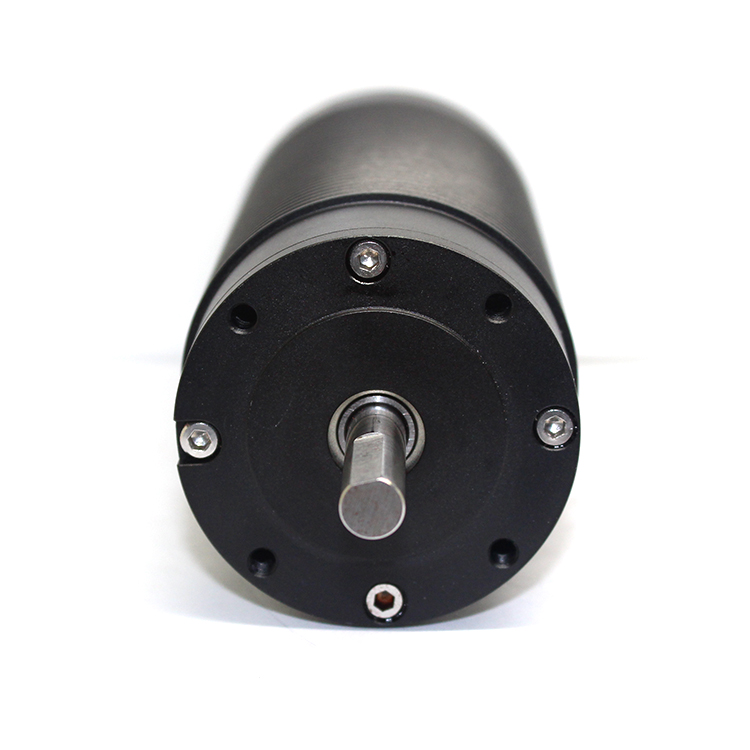

Mounting Holes: Ф18, 4*M4
Motor Weight: 1520g (with an 8.0 banana plug, total length 200mm)

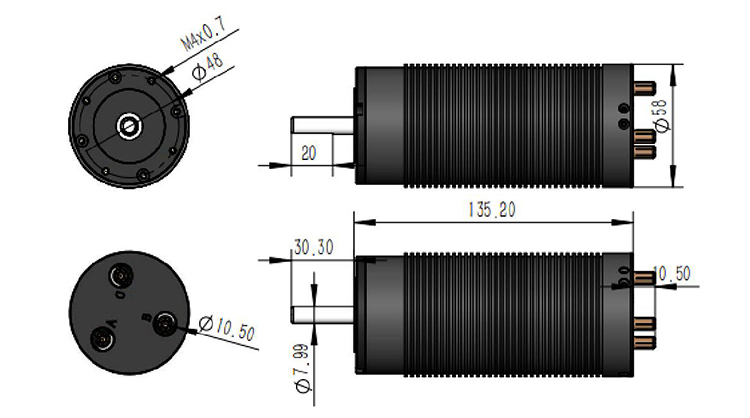

Dimensions: Ф58*135mm
Recommended Electronic Speed Controller (ESC): HV200A

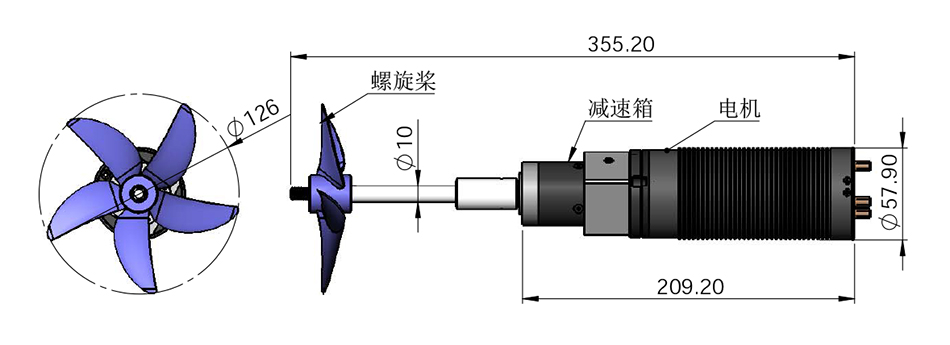

Recommended Propeller: 110mm (five blades)
Structural Features
Advanced Insulation Material: The design of the 58135 brushless motor for electric surfboard attaches great importance to practicality and safety. Using Class H high-temperature insulation materials, it can operate stably in an environment with a temperature of up to 180°C.
High-quality Wire: The coil has passed the 500V high-voltage test, ensuring the reliability of the motor.
High-quality Wire: The motor resistance is only 11mΩ, which helps to reduce energy loss and improve operating efficiency.
High-precision Balance: The rotor balance precision is very high, with the standard requiring less than 5mg. Therefore, the vibration during operation is very small, showing extremely smooth operating characteristics.
High-strength Housing: The motor housing has a protection level of IP45, which can effectively prevent dust and water, making it suitable for use in complex working environments.
Application Fields
Model Aircraft Field: High-performance model aircraft, multi-rotor drones, etc.
Power Tools: High-power tools such as electric drills and cutting machines.
Industrial Automation: Automated equipment that requires high precision and efficient power.
Precautions
Installation and Use: Before installation, ensure that the motor and all accessories are in good condition. Make sure to connect the power supply and the motor correctly to avoid incorrect wiring.
Safe Operation: It is recommended to use the specified electronic speed controller and propeller to ensure the best performance of the motor. Wear protective equipment such as goggles and gloves during operation to avoid accidents. Do not use the motor in flammable and explosive environments.
Maintenance and Upkeep: After use, it is recommended to clean the surface of the motor and keep it dry. When storing the motor, place it in a dry and ventilated place to avoid moisture.
If you are interested in the 58135 brushless motor for electric surfboard or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:
Tel: +86-769-85228181
Email: chris@x-teamrc.com
BASIC PARAMETERS
| Enameled wire insulation grade: | H grade 180°C high temperature resistant | No-load current: | 3.5A(10V/490KV) |
| Coil insulation test: | 500V high-voltage | Motor resistance: | 11mΩ |
| Rotor balancing standard: | <5mg | Maximum current: | 150A(10S) |
| Overall dynamic balancing standard: | <10mg | Maximum power: | 10000W(10S) |
| Dustproof and waterproof grade: | IP45 | Maximum voltage: | 66V(18S) |
| Mounting holes: | 48*48MM 4*M4 | Motor weight: | 1520g (200mm with 8.0 banana tip) |
| Exterior dimensions: | Ф58*135mm | Recommended ESC: | HV200A |
| Motor weight: | 1520g (with 6.0 banana tip) | Recommended propellers: | 110MM(5leaves) |
LOAD TEST DATA
| Input Test Data | Output test data | |||||
| Voltage V | Current A | Input power W | Rotational speed | Torque N.M | Output power | Efficiency% |
| 48 | 26 | 1248 | 6000 | 1.46 | 917.3 | 73% |
| 48 | 40 | 1920 | 8000 | 1.68 | 1407.3 | 73% |
| 48 | 53 | 2544 | 10000 | 1.85 | 1937.2 | 76% |
| 48 | 87 | 4176 | 15000 | 2 | 3141.4 | 75% |
| 48 | 109 | 5232 | 18000 | 2.08 | 3920.4 | 75% |
