Description

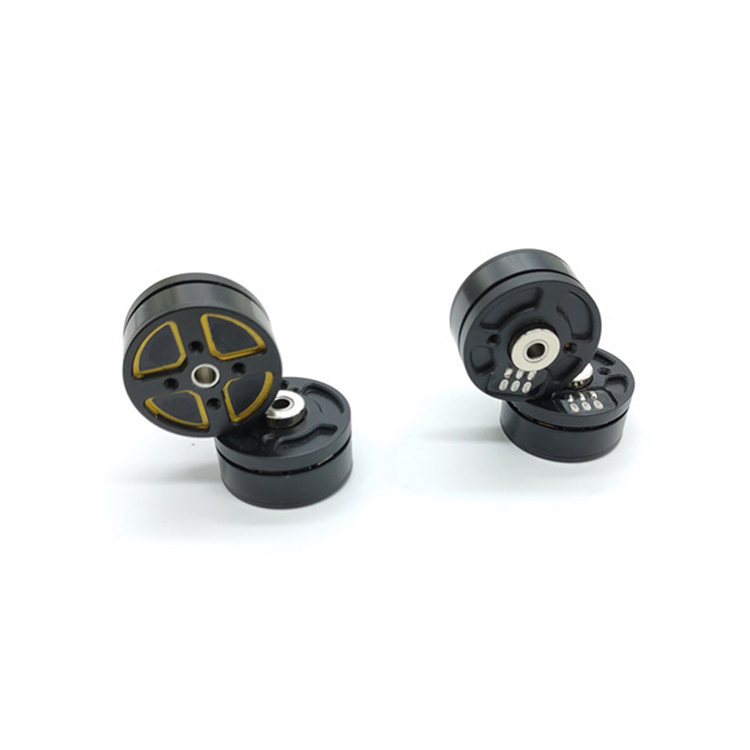

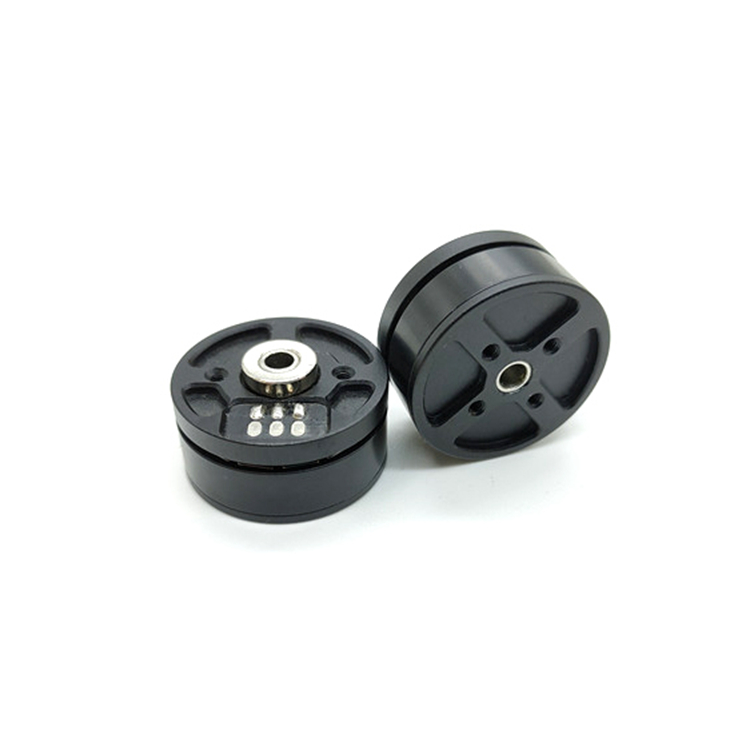

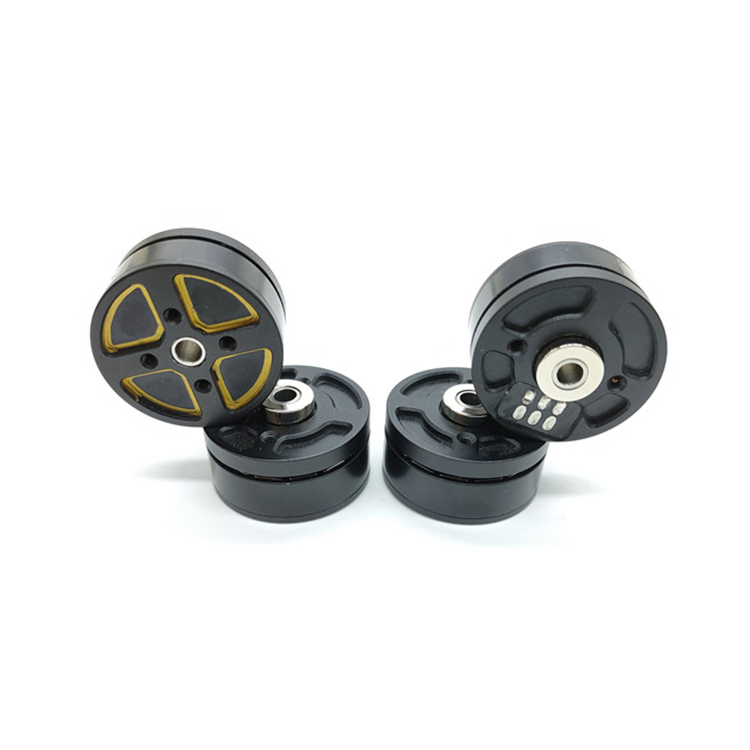

The 2205 Gimbal brushless motor is a motor specifically designed for high-performance applications, integrating advanced technology and exquisite craftsmanship. The 2205 Gimbal brushless motor features excellent torque output and high efficiency. With its compact structure and lightweight design, it has become an ideal choice for drones, gimbal cameras, robots, and other precision equipment.
Performance Parameters
Product Model: XTG2205
Torque: At a voltage of 11.1V, it provides a torque of 0.04N.m.

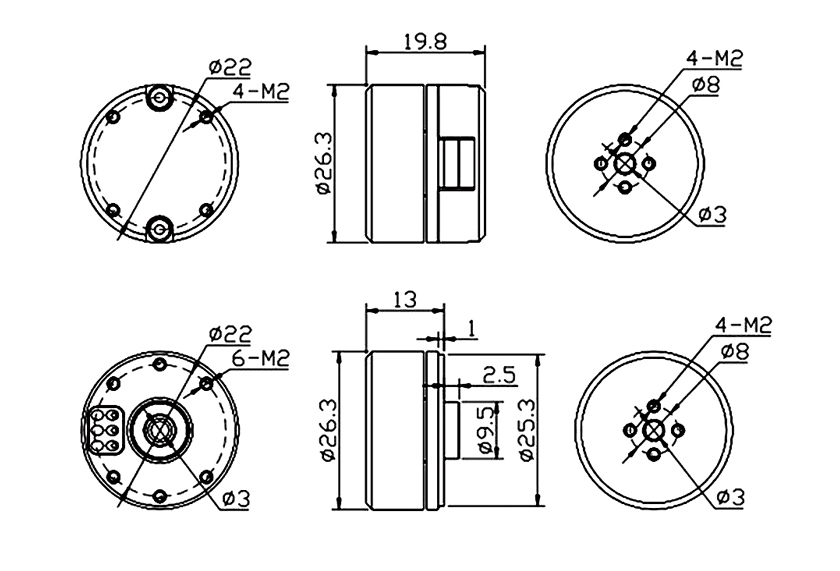

Rotor Mounting Holes: It is designed with 4 M2 threaded holes of Φ8mm.
Weight: 20g
Resistance: 7.1Ω
Maximum Load: It can support a gimbal or camera weighing up to 380g, demonstrating its strong load – bearing capacity.
Stator Size: Φ22x5mm
Encoder: The AS5048A encoder is adopted, providing high – precision position feedback to ensure precise control.
Configuration: 12N14
Maximum Stall Current: 1.8A
Voltage Range: It supports a wide voltage input of 8 – 12V.
Stator Mounting Holes: 6 M2 threaded holes of Φ22mm.
Structural Features
The 2205 Gimbal brushless motor adopts a brushless design, which reduces friction and wear and extends its service life. Its precise stator and rotor structure, combined with an efficient electromagnetic design, ensures the motor’s high – efficiency and low – noise operation. The built – in AS5048A encoder in the motor provides high – precision position information, enabling the control system to achieve precise control of the motor and meet the requirements of complex application scenarios.
Application Areas
Micro Drone Gimbals: It provides stable and precise power support for the gimbal systems of micro drones, ensuring that the camera can capture high – quality images during flight.
Micro Camera Stabilizers: It is suitable for micro camera stabilizers, helping photographers achieve smooth shooting effects.
Small Robot Joints: Its high – torque and high – precision characteristics can meet the requirements of robots in complex movements, and the lightweight design helps improve the robot’s flexibility.
Industrial Automation Micro Devices: In industrial automation equipment that requires high – precision positioning and low – load capacity, it can provide reliable driving force, improving production efficiency and product quality.
Precautions
Safe Operation: Avoid using the motor in a humid, high – temperature, or flammable environment.
Voltage Matching: Please ensure that the input voltage is within the range of 8 – 12V to avoid overheating or damage to the motor.
Load Control: Do not exceed the maximum load capacity of the motor to avoid excessive wear or damage to the motor.
Regular Inspection: Regularly check the installation and connection of the motor to ensure that the motor is in good working condition.
Professional Maintenance: If you need to repair or replace motor parts, please make sure to have it operated by a professional to ensure the performance and safety of the motor.
If you are interested in the 2205 Gimbal brushless motor or need more product information, please feel free to contact us. We are committed to providing you with high – quality products and services to meet your needs. Whether in automation, robotics, or other high – performance application scenarios, X – TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
Telephone: +86 – 769 – 85228181
Email: chris@x – teamrc.com
