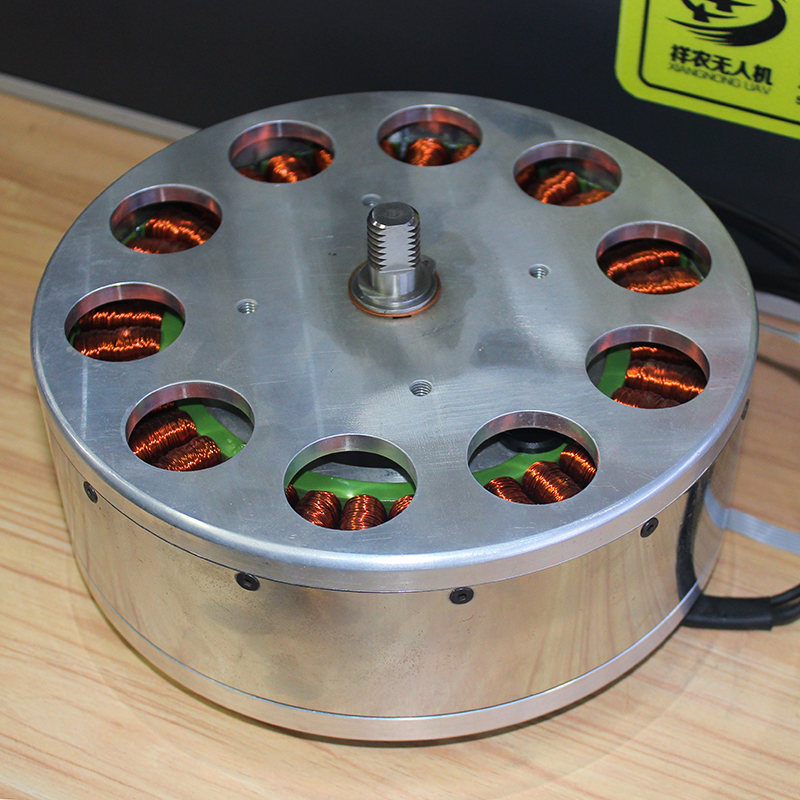

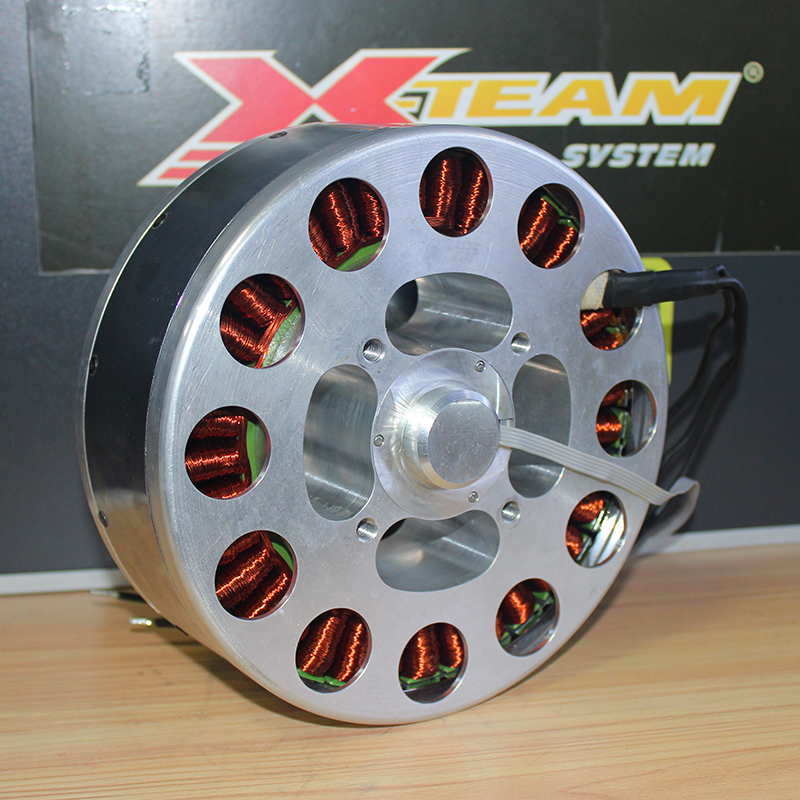

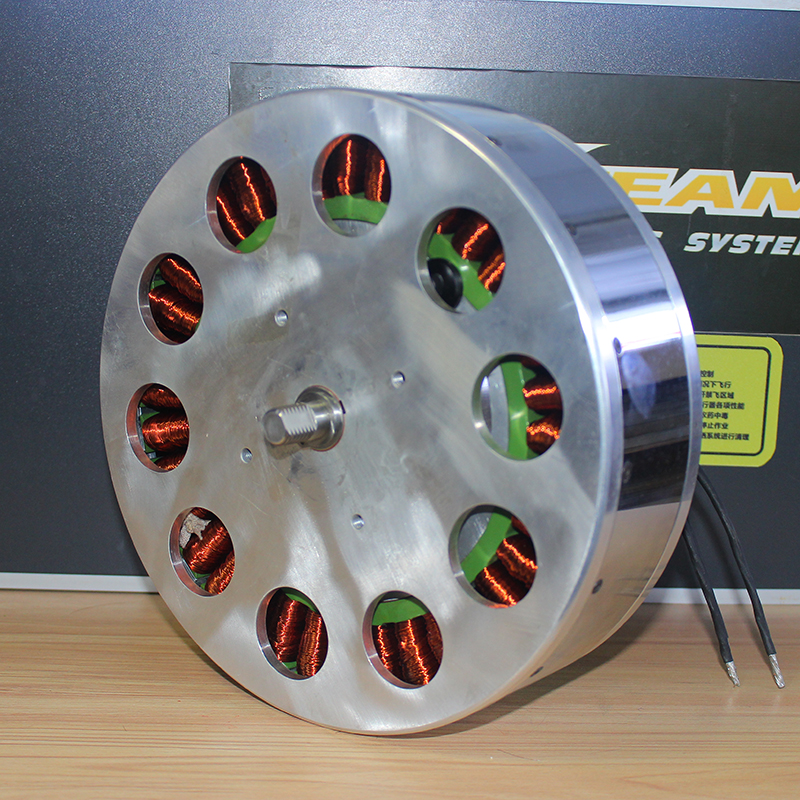

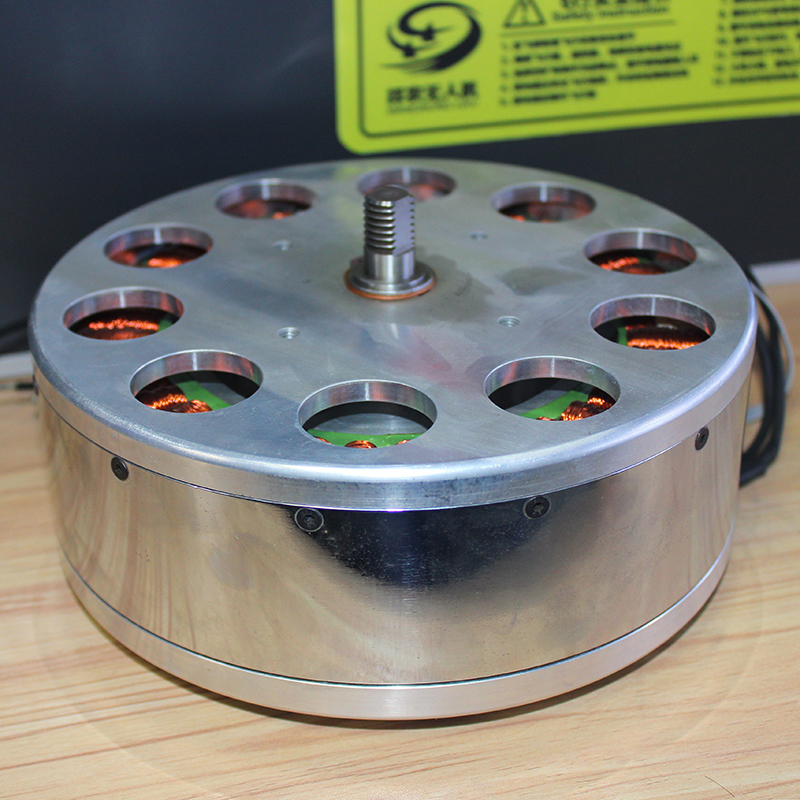

22040 outrunner brushless motor for sports equipment

Description

The 22040 outrunner brushless motor for sports equipment is a high-performance electric motor designed for compactness and 卓越 performance. Widely used in drones, power tools, industrial automation, and electric vehicles, this motor 采用 advanced brushless DC technology with an outrunner configuration, offering high efficiency, low noise, and long lifespan. Its robust power output and stable operation make it ideal for demanding applications, while excellent heat dissipation ensures reliable performance in complex environments. With high 防护等级，it operates reliably under harsh conditions. For system integration, the motor provides versatile interfaces and connection options for customized designs.

Performance Parameters

Model: 22040

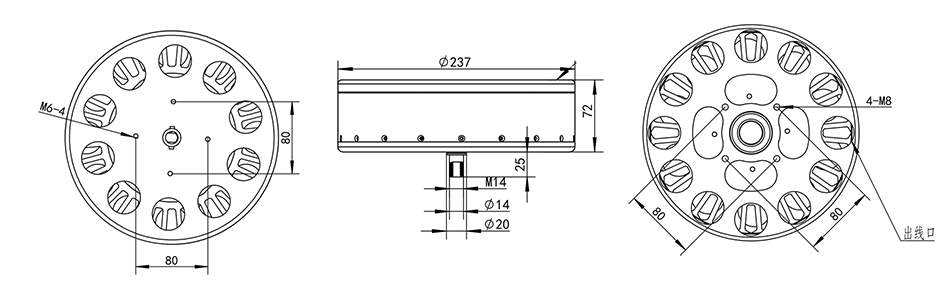

Dimensions: Φ237x74mm

Shaft: Φ14x25mm

Voltage Range: 40V~80V

Max Speed: 1000 RPM

No-load Current: 4.5A @10V

Rated Torque: 50N·m

Rated Current: 25A

Max Power: 3000W

Max Torque: 80N·m

Max Current: 80A

Weight: 870g

Structural Features

Compact & Powerful: Delivers stable power in a space-saving design.

Brushless Technology: Reduces mechanical wear for extended service life.

Outrunner Design: Optimizes torque density and ease of installation.

Application Fields

Drones/Aeromodelling: Powers high-efficiency flight for photography and racing.

Power Tools: Provides high torque for screwdrivers, drills, etc.

Industrial Automation: Enables precise control in automated machinery.

Electric Vehicles: Drives scooters, balance bikes with reliable performance.

Precautions

Voltage Compliance: Use within 40V~80V to prevent damage.

Heat Management: Ensure adequate cooling during high-load operation.

Alignment: Properly align motor shaft with flange holes during installation.

Environmental Protection: Select appropriate 防护等级 based on working conditions.

Maintenance: Regularly inspect and replace worn components for sustained performance.

If you’re interested in the 22040 outrunner brushless motor or need further details, contact us for customized solutions. X-TEAM motors deliver reliable power for automation, robotics, and high-performance systems.
