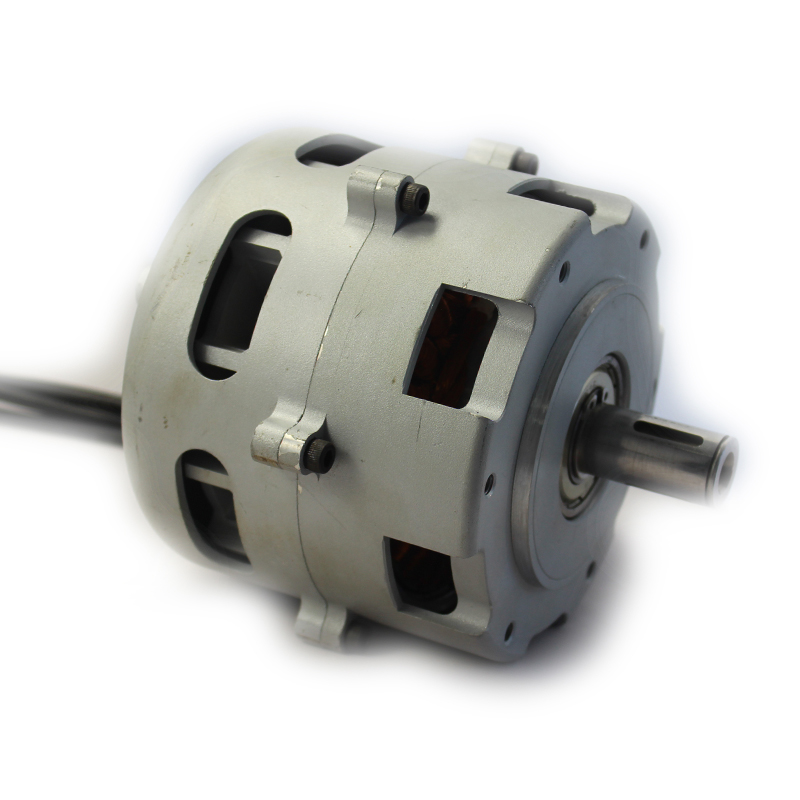

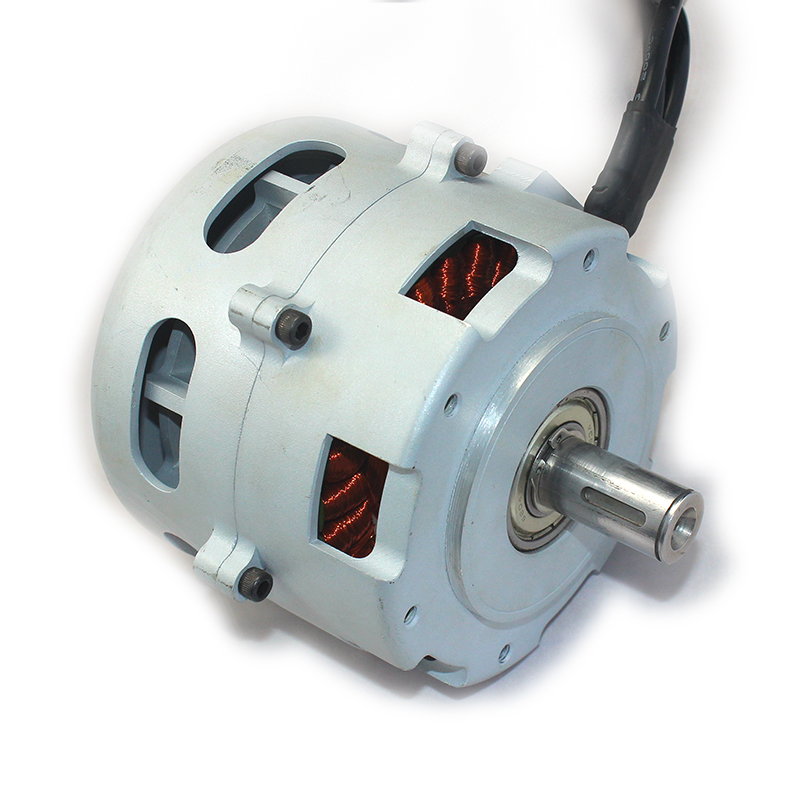

14140 15kW high power brushless motor for new energy car

X-TEAM 15kW high power brushless motor for new energy car

Category: Tag:

Description

The 14140 15kW high power brushless motor for new energy car is a high-performance motor with an outrunner structure, which is widely applied to industrial equipment, new energy vehicles and other scenarios that demand high torque and high power. By adopting advanced technology, it can maintain excellent efficiency and stability during high-load and high-speed operation, making it suitable for application requirements in various complex environments.

14140 15kW high power brushless motor for new energy car

Performance Parameters

Model: 14140

Motor Type: Outrunner structure, which offers higher torque output and better heat dissipation performance.

Configuration: The configuration of 36 poles and 24 slots (36N24P) helps to optimize the torque output and stability of the motor.

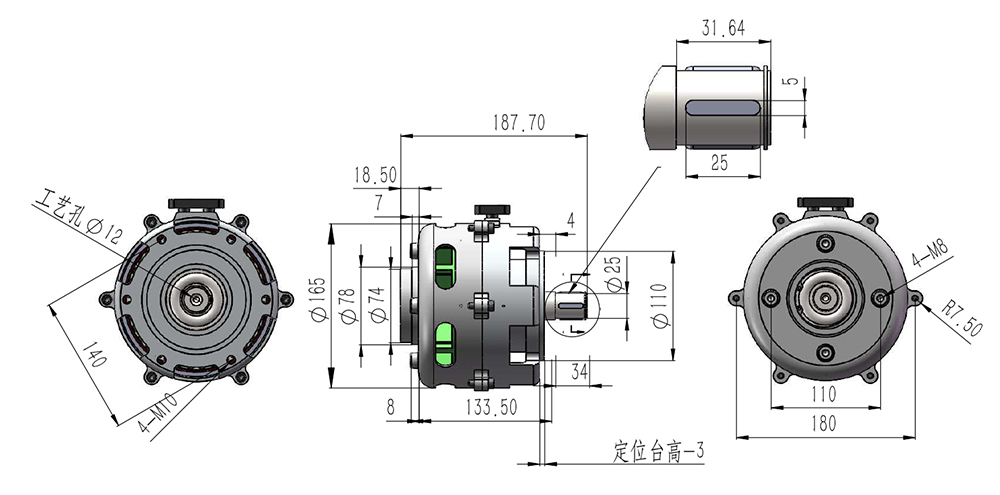

Dimensions: The outer diameter of the motor is Φ165mm, the length is 135mm, and the outer diameter of the shaft is Φ34mm.

Voltage Range: 40V to 85V, compatible with various power supply environments.

KV Value: 90KV. That is, the no-load rotational speed of the motor is 90 revolutions per minute for each volt of voltage, making it suitable for applications that require relatively high rotational speed and torque.

No-load Current: 6.5A (under a voltage of 10V).

Rated Torque: 15 N·m, suitable for most conventional applications, ensuring smooth operation.

Rated Current: 150A, which can continuously provide stable power and torque.

Maximum Power: 20kW.

Maximum Torque: 28 N·m.

Maximum Current: 350A.

Weight: 6600 grams.

Protection Level: IP47, dustproof and waterproof, suitable for relatively complex environments.

Mounting Holes: 4 M8 threaded holes.



Structural Features

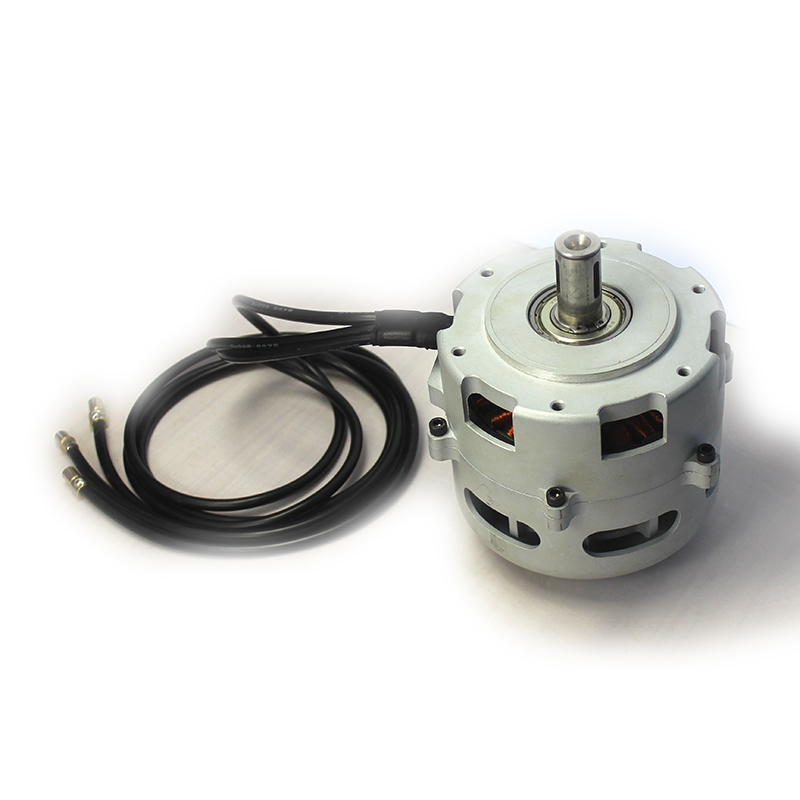

The 14140 15kW high power brushless motor for new energy car has a compact structure, with a length of 135 mm, an outer diameter of 165 mm, and an outer diameter of the shaft of 34 mm. The outrunner design not only increases the torque output of the motor but also improves the heat dissipation effect, enabling it to perform more reliably during long-term high-load operation. The overall design takes both performance and versatility into account, making it easy to integrate into various devices.

14140 15kW high power brushless motor for new energy car

Application Fields

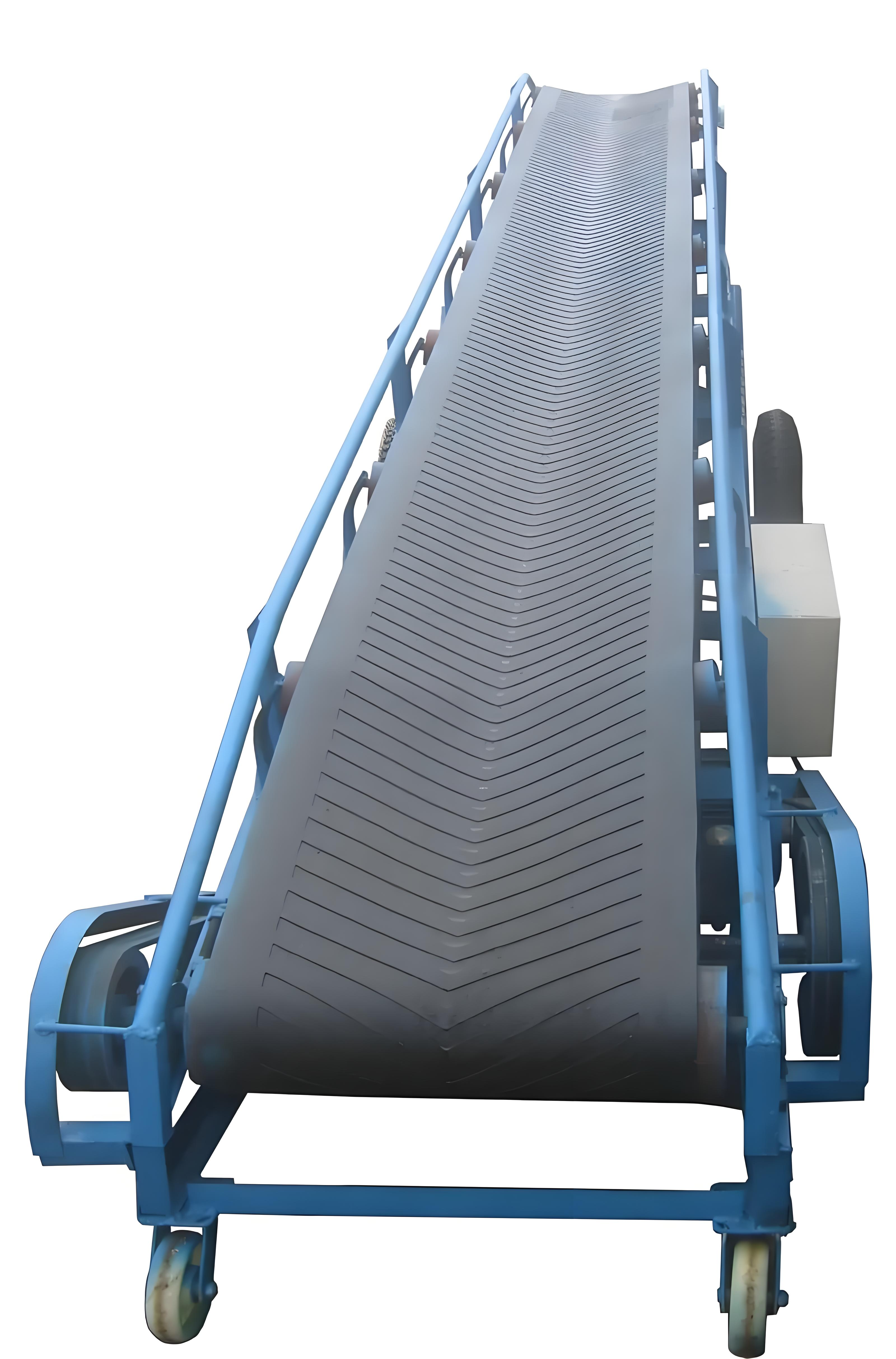

Industrial Equipment: Such as machine tools, conveyor belts, etc., it can provide strong power to meet the needs of industrial production.

Electric Vehicles: As a core component of the drive system, it ensures the driving performance and stability of the vehicle.

Heavy Machinery: Suitable for equipment such as cranes and mixers, it can meet the power demands of high-load operations.

Precautions

Installation and Fixation: When installing the motor and mechanical parts, please ensure that appropriate tools and fasteners are used and follow the provided installation guidelines. Make sure that the installation surfaces of the motor and parts are flat, clean, and free of oil stains and impurities.

Electrical Connection: When connecting the power cord, please ensure that the power supply voltage matches the rated voltage of the motor to avoid damaging the motor due to excessively high or low voltage. Use suitable cables and connectors to ensure reliable and firm electrical connections.

Operation and Maintenance: Before operating the motor, please check whether the installation of the motor and mechanical parts is correct and whether all components are firmly fastened.Avoid operating the motor under overload or extreme conditions to prevent damage to the motor.Regularly check the operating condition of the motor. If abnormal noise, vibration, or excessive temperature rise is found, please stop the machine immediately and check the cause.



If you are interested in the 14140 15kW high power brushless motor for new energy car or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

14140

Motor Type

Outrunner

Configuration

36N24P

Size

Φ165x135mm

Voltage

40V~85V

Max RPM

8000 RPM

KV

90KV

No Load Current

6.5A (10V)

Rated Torque

15N.m

Rated Current

150A

Max Power

20kW (10s)

Max Torque

28N.m

Max Current

350A

Weight

6600g

Ingress Protection

IP47
