Description
The BL1640AN standard series coreless BLDC motor is an ultra-high-speed and ultra-lightweight brushless DC motor (BLDC). With its brushless design and precision ball bearing structure, it features high efficiency, low noise, and a long service life. It is suitable for fields such as industrial automation, robotics, medical devices, and micro power tools, meeting the requirements for ultimate dynamic response and compact design.

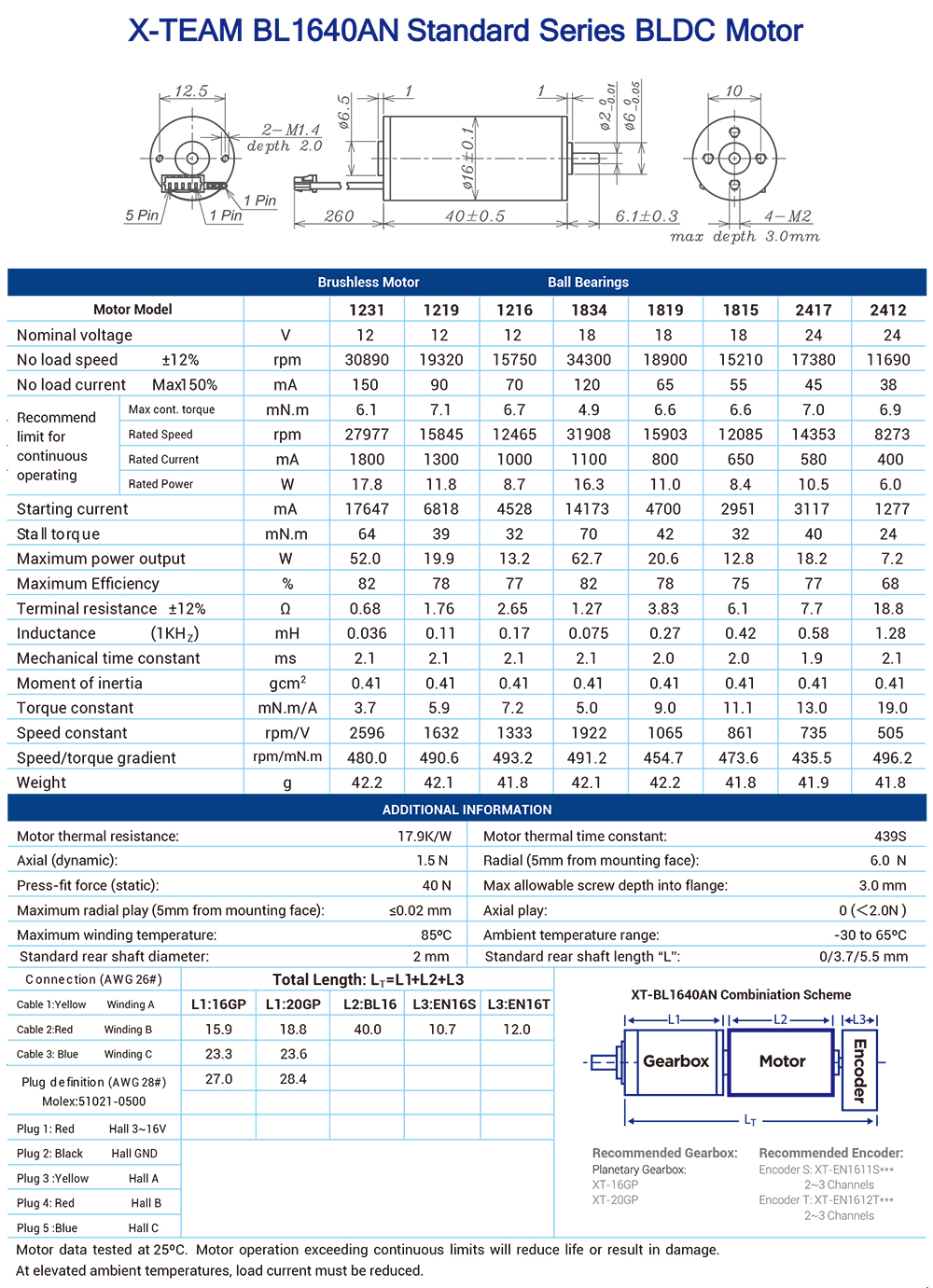

Motor Models and Specifications
X-TEAM offers the BL1640AN standard series coreless BLDC motor, including models 1231, 1219, 1216, 1834, 1819, 1815, 2417, and 2412. These models vary in aspects such as voltage, rotational speed, and torque to meet different application requirements.
Performance Parameters
Rated Operating Voltage: Depending on the model, the rated operating voltages are 12V, 18V, and 24V respectively.
Rated Current: The rated current of each model varies, ranging from 38A to 150A.
Rated Torque: The torque values vary greatly according to the models, with the lowest being 5.1 Nm and the highest reaching 9.9 Nm.
Rotational Speed: The rotational speed of each model also varies. The lowest rotational speed is 11090 rpm, and the highest can reach 31906 rpm.
Maximum Output Power: The maximum output power ranges from 7.2 W to 153.8 W.
Maximum Efficiency: The maximum efficiency of the motor is between 68% and 82%.
Structural Features
High-performance Permanent Magnet: It provides high energy density and efficiency, ensuring that the motor maintains high performance during long-term operation.
High-precision Encoder: An incremental encoder is optional, providing precise rotational speed and position feedback to meet the requirements of precise control.
High-strength Shaft and Bearings: Designed for high rotational speeds and low vibrations, it ensures the long service life and high reliability of the motor under harsh working conditions.
High-quality Materials: The stator, rotor, and housing are made of high-quality materials to ensure the reliability and durability of the motor in various environments.
Application Fields
Robotics: It is suitable for various industrial robots, service robots, and automated equipment, providing precise control and high efficiency.
Power Tools: Such as electric drills, cutting machines, and vacuum cleaners, etc., meeting the requirements for high torque and high rotational speed.
New Energy: It is suitable for the drive parts in solar energy and wind energy systems, providing stable and reliable power output.
Vehicles: Such as electric bicycles, electric motorcycles, and electric wheelchairs, etc., providing high-efficiency and long-service-life drive solutions.
Precautions
Safe Operation: When wiring and operating, make sure to cut off the power supply and take necessary insulation protection to prevent electric shock.
Environmental Requirements: The motor should be used within the specified ambient temperature range, and avoid operating it in high-temperature, humid, or corrosive environments.
Load Matching: Ensure that the working load of the motor is within its rated range, and avoid overloading to extend the service life of the motor.
Cooling Measures: When operating under high load for a long time, appropriate cooling measures should be taken to prevent the motor from overheating.
Regular Inspection: Regularly check the operating status of the motor, including current, temperature, and noise, etc., and deal with problems in a timely manner when they are found.
Proper Grounding: Ensure that the motor housing is properly grounded to avoid damage to the motor caused by static electricity and lightning strikes.
The BL1640AN standard series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other occasions with high-performance requirements, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
Telephone: +86-769-85228181
Email: chris@x-teamrc.com
