Description
The BL1632AN standard series coreless BLDC motor, as a high-performance power device specifically tailored for the industrial field and specific application scenarios, demonstrates excellent performance and broad application potential. With its outstanding high-efficiency performance, durable quality, and precisely controllable rotational speed characteristics, this motor plays a crucial role in numerous mechanical systems. It not only ensures the reliability of power transmission but also provides high-precision operation performance, serving as the core force to drive the efficient and stable operation of various mechanical devices. Whether in harsh industrial environments or specific application scenarios that require precise control, it can showcase its unparalleled performance advantages, bringing more stable and efficient power support to users’ production operations.
Motor Models and Specifications

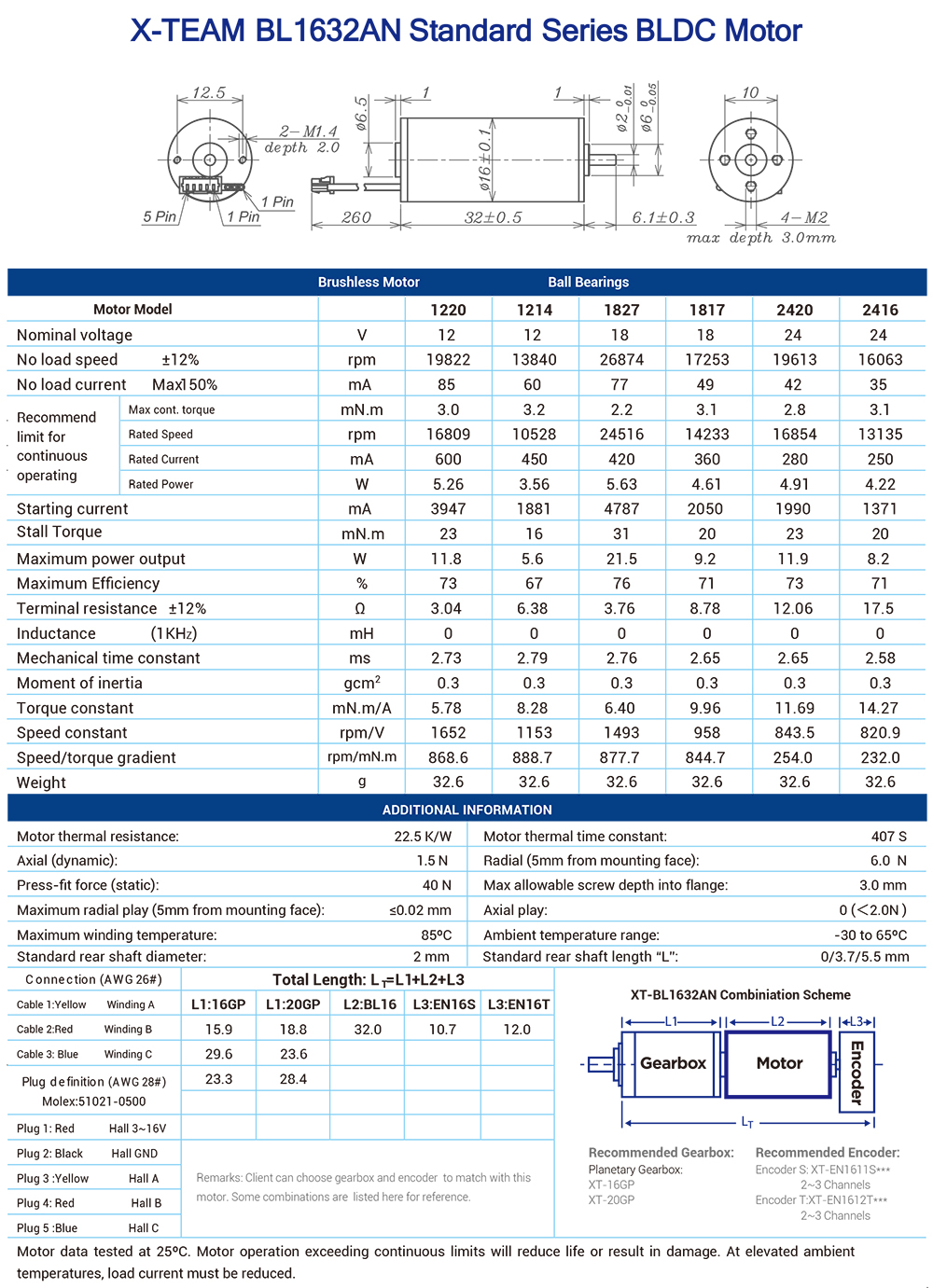

X-TEAM offers various models of the BL1632AN standard series coreless BLDC motor, including 1220, 1214, 1827, 1817, 2420, and 2416. These models vary in aspects such as voltage, rotational speed, and torque to meet different application requirements.
Performance Parameters
Recommended Gear Ratio: During continuous operation, the optimal gear ratio is 16409 – 13138 to ensure efficient operation.
Rated Current and Starting Current: The rated current is 450 – 250 mA, and the starting current is as high as 3947 – 1371 mA, meeting the instantaneous power demand during startup.
Locked-rotor Torque: It is between 23 – 200 mN·m, reflecting the torque output capability of the motor under heavy loads.
Maximum Power Output: The range is 11.8 – 4.92 W, depending on the model and voltage.
Maximum Efficiency: As high as 73 – 76%, ensuring the efficient operation of the motor and reducing energy consumption and heat generation.
Structural Features
Motor Structure: Adopting a brushless DC design provides higher efficiency and a longer service life.
Bearing Type: Depending on different models, it is equipped with 2 to 5 ball bearings to ensure smooth operation and low noise.
Thermal Resistance and Thermal Time Constant: The axial thermal resistance is 22.5 K/W, and the thermal time constant is 407 seconds, ensuring the stable operation of the motor under high loads.
Mechanical Strength: The axial and radial load capacities are 1.5 N and 6.0 N respectively, suitable for a variety of mechanical applications.
Application Fields
Industrial Automation: Suitable for high-speed micro sorting machines, precise positioning, etc., providing precise control and high efficiency.
New Energy Vehicles: Suitable for the drive systems of new energy vehicles, providing high-efficiency and long-service-life drive solutions.
Medical Equipment: Medical detection devices such as portable detectors, micro infusion pumps, and surgical robots, ensuring precise control and low-noise operation.
Precautions
Operating Environment: The motor data is tested in an environment of 25℃. Operating beyond the continuous working limit will reduce the motor’s service life or cause damage. In cases of a higher environmental temperature, the load current must be reduced.
Electrical Connection: Use appropriate cables and connectors to ensure the safety and reliability of the electrical connection.
Mechanical Installation: Ensure the correct installation of the motor and avoid the axial and radial loads exceeding the recommended values.
Maintenance: Regularly inspect the motor and related components to ensure their normal operation.
Safe Operation: Follow all relevant safety standards and operating procedures to ensure the safety of personnel and equipment.
The BL1632AN standard series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other occasions with high-performance requirements, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
