X-TEAM 10840 outrunner brushless motor for electric surfboard

Description

This 10840 outrunner brushless motor for electric surfboard is specifically designed for high-power applications and is widely used in fields such as electric vehicles, power tools, and industrial equipment. With its excellent performance and stability, this motor is an ideal choice for many electric systems.

10840 outrunner brushless motor for electric surfboard

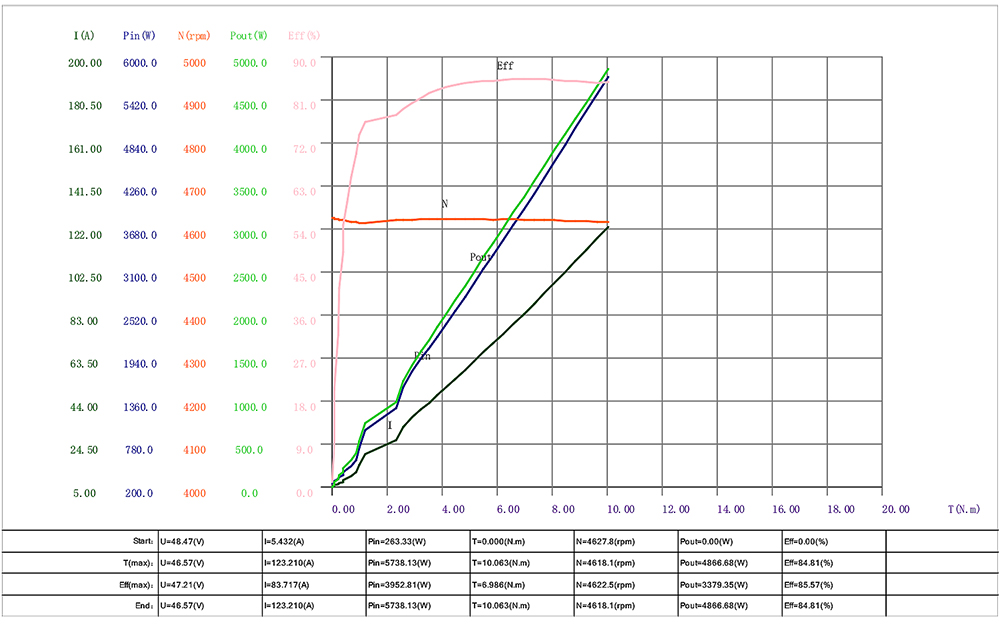

Performance Parameters

Voltage: 48V

Maximum Rotational Speed: 6200 RPM

KV Value: 130KV

No-load Current: 6.0A (8.4V)

Maximum Power: 15kW (48V)

Maximum Current: 310A

Maximum Torque: 18N.m (sustained for 10 seconds)

Rated Power: 10kW

Rated Torque: 10N.m

Rated Rotational Speed: 5000 RPM

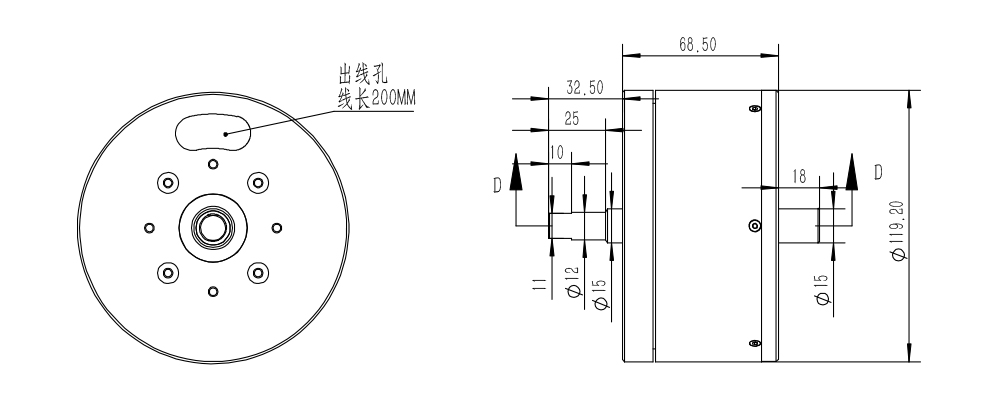

Stator Dimensions: Φ108x40mm

Dimensions: Φ119×68.5mm

Weight: 3500g



Structural Features

The 10840 outrunner brushless motor for electric surfboard adopts an efficient design and can maintain stable operation at high rotational speeds, making it suitable for situations that require high power. Its BLDC (Brushless DC) structure can not only reduce noise but also significantly improve the service life and reliability of the motor. The high torque output of the motor can reach up to 18N.m, ensuring smooth operation even under heavy loads. Its compact size and light weight make it more convenient for installation and maintenance.

10840 outrunner brushless motor for electric surfboard

Application Fields

Electric Vehicles: It is very suitable for electric motorcycles and electric bicycles, providing them with strong power and efficient energy conversion.

Industrial Machinery: It is widely used in industrial equipment that requires high torque and high-speed operation, such as automated production lines and robots.

Other High-power Equipment: It is also applicable to fields with high-power requirements such as power tools and aerospace equipment.



Precautions

Safe Operation: Please read the manual carefully before use to ensure that you are familiar with all safe operations and wear the necessary protective equipment.

Correct Wiring: Ensure that the wiring of the motor is correct during use to avoid equipment damage caused by short circuits or improper wiring.

Environmental Requirements: The motor should be used in a dry and ventilated environment to avoid damage to the equipment caused by a humid and corrosive environment.

Regular Inspection and Maintenance: To extend the service life of the motor, please regularly check the operating status of the motor and carry out necessary maintenance.

Load Control: Avoid keeping the motor in an overloaded state for a long time to ensure that its performance is not affected.



If you are interested in the 10840 outrunner brushless motor for electric surfboard or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

10840

Motor Type

Outrunner

Voltage

48V

Max RPM

6200 RPM

KV

130KV

No Load Current

6.0A (8.4V)

Max Power

15kW (48V)

Max Current

310A

Max Torque

18N.m (10s)

Power

10kW

Rated Torque

10N.m

Rated RPM

5000 rpm/min

Stator dimension(DxL)

Φ108x40mm

Size

Φ119×68.5mm

Weight

3500g
