Description

The 10820 Brushless motor for agriculture drone is a high-power and high-torque brushless DC motor (BLDC), specifically designed for industrial-grade drones, heavy-duty handling equipment, and high-load automated machinery. Its core advantages lie in the low rotational speed characteristic of 100KV, the peak power of 4000W, and the robust structural design, enabling it to provide continuous and stable power output in extreme load scenarios. Through the optimized electromagnetic design and efficient heat dissipation solution, this motor demonstrates excellent reliability and durability in heavy-duty tasks.

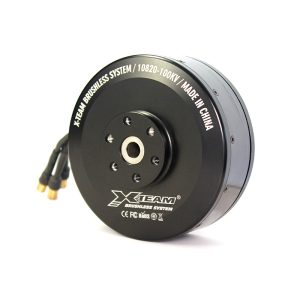

10820 Brushless motor for agriculture drone

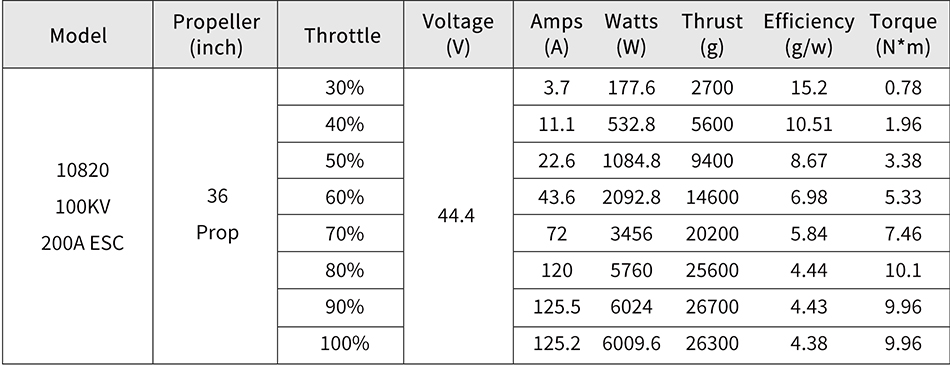

Performance Parameters

Model: XTA10820

KV Value: 100KV (100 revolutions per minute at no-load corresponding to each volt of voltage)

Maximum Power: 4000W (continuous power), and the peak can reach 6009.6W

Maximum Current: 125.2A

Operating Voltage Range: 10-12S lithium battery (37V – 50.4V)

No-load Current: 1.6A

Resistance: 13.5mΩ

Efficiency Range: 4.38 – 15.2 grams per watt

Dimensions: Φ119×63mm

Weight: 1488g

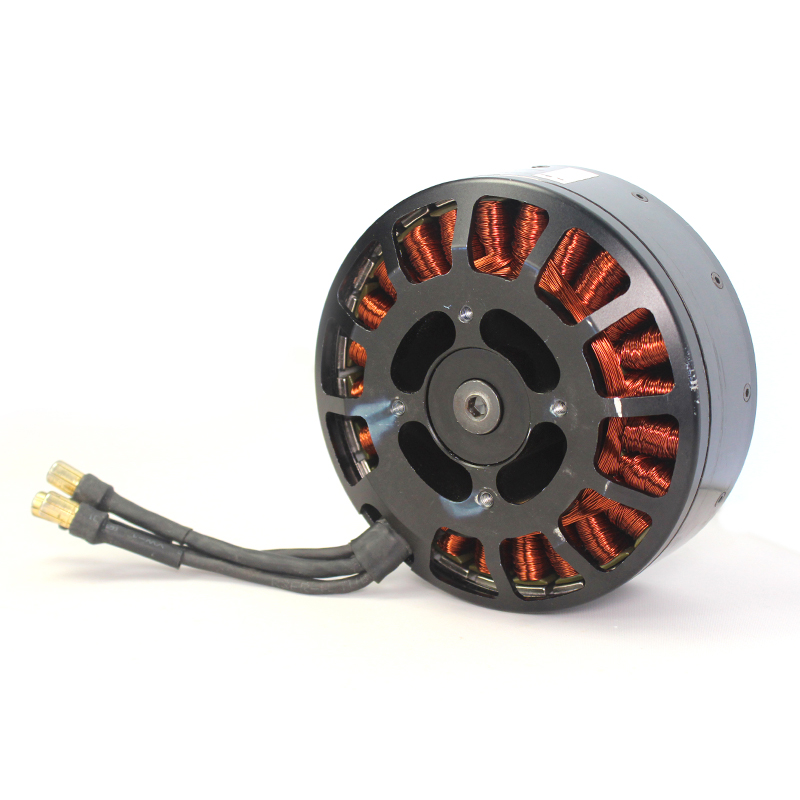

Structural Features

High Efficiency: The 10820 Brushless motor for agriculture drone has high efficiency, can provide strong thrust, and at the same time maintain low energy consumption.

Powerful Drive: It supports large propellers and is suitable for applications that require high thrust.

Lightweight and Durable: The motor is lightweight, and its structure is robust, ensuring the reliability and durability for long-term use.

10820 Brushless motor for agriculture drone

Application Fields

Industrial Drones: Provides heavy-load lifting force for logistics and transportation drones and agricultural plant protection drones, supporting large-capacity cargo loading.

Automated Machinery: Integrated into heavy-duty robotic arms and automated warehousing equipment to achieve high-precision handling and high-speed response.

Special Equipment: Suitable for the power drive modules in fire-fighting robots and rescue equipment.

Energy Field: Such as the test platform for wind turbines and the drive unit of large pumps.



Precautions

Safe Use: Please ensure that it is used within the specified voltage range and avoid overvoltage or undervoltage operations.

Correct Installation: When installing, please check the dimensions of the mounting holes of the rotor and stator to ensure firm fixation and prevent loosening.

Heat Dissipation Measures: In high-intensity usage scenarios, pay attention to the heat dissipation of the motor to prevent performance degradation or damage caused by overheating.

Maintenance: Regularly check the status of the motor, lubricate the moving parts, and ensure that the motor is in the best working condition.

If you are interested in the 10820 Brushless motor for agriculture drone or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

XTA10820

Voltage

10-12S liPo

KV

100KV

No Load Current

1.6A

Max Power

4000W

Size

Φ119x63mm

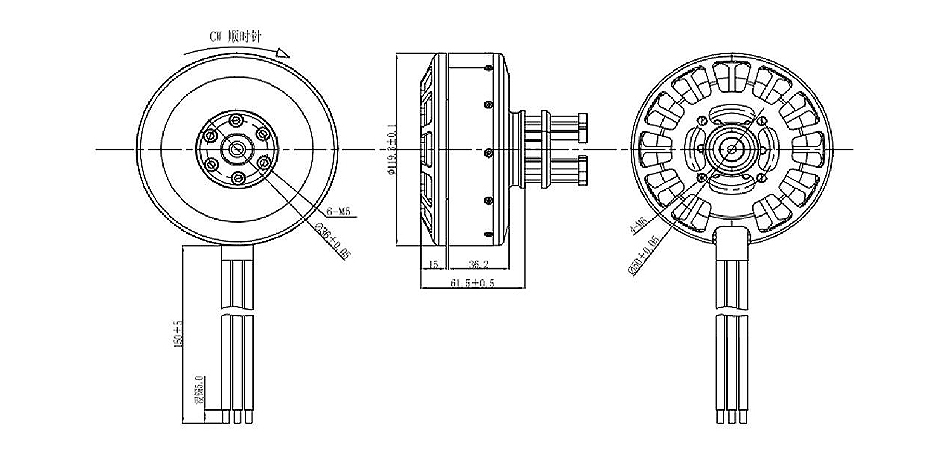

Rotor mounting holes

Φ26mm 6xM5

Stator mounting holes

Φ60mm 4xM6

Resistance

13.5mΩ

Weight

1488g
