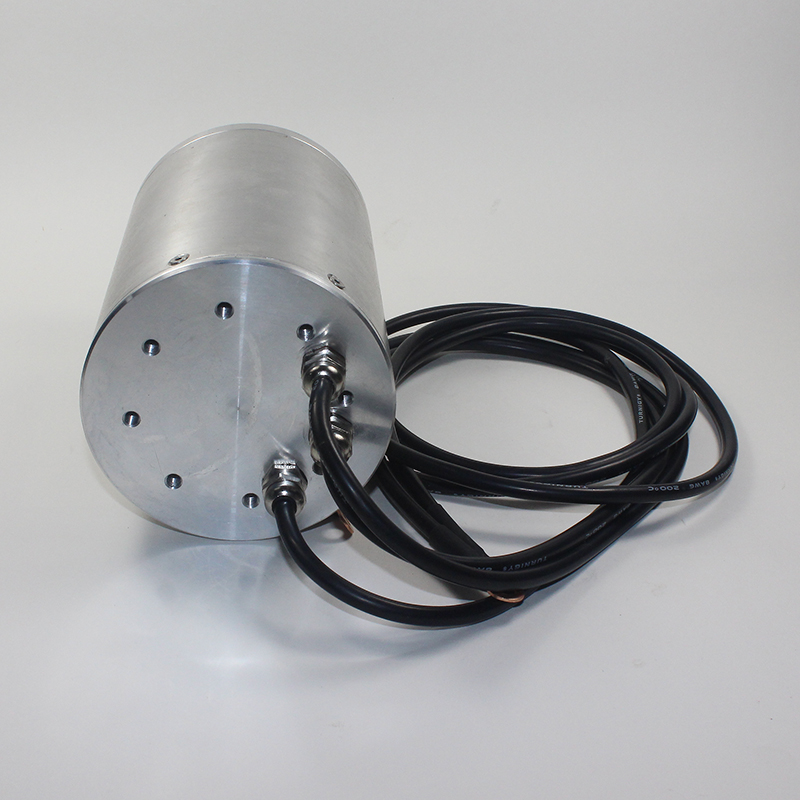

X-TEAM 106160 brushless motor for electric surfboard

Description

The 106160 brushless motor for electric surfboard is specifically designed for high-performance applications. Its structure with 18 slots and 6 poles makes the motor more robust, durable, and capable of maintaining stable operation in various harsh environments. Whether in industrial equipment, household appliances, or electric vehicles, this motor can provide excellent power and efficiency.

106160 brushless motor for electric surfboard

Performance Parameters

Model: 106160

Structure: 18 slots and 6 poles

Number of Phases: 3 phases

Dimensions: Φ106×160 mm

Motor Type: Inrunner type

Operating Voltage: 48-84 volts (suitable for 12-20 series-connected batteries)

Rated Voltage: 72 volts

Rated Torque: 7.6 N·m

Rated Power: 9000 watts

Maximum Rotational Speed: 13000 revolutions per minute

Maximum Power: 20000 watts

Maximum Efficiency: 85%

Cooling System: Water cooling

Protection Level: IP57

Operating Environment Temperature: -20℃~85℃



Structural Features

The design of this 106160 brushless motor for electric surfboard focuses on high power density and high efficiency, making it suitable for devices that require strong output. The dynamic balance control of the motor is also very precise, being less than 15 milligrams, which can ensure smooth operation and low noise. Compared with other motors, its commutation is more accurate, improving the stability of performance.

106160 brushless motor for electric surfboard

Application Fields

Electric Vehicles: Brushless DC motors are widely used in electric vehicles, providing efficient and stable driving force.

Industrial Automation: In automated equipment and industrial robots, it can precisely control movement and improve production efficiency.

Household Appliances: Brushless motors are applied in household appliances such as cordless tools, washing machines, and air conditioners, bringing energy conservation and high efficiency.

Aerospace: Due to its light weight and high efficiency, it is suitable for the aerospace field.

Medical Equipment: It plays a crucial role in precision medical equipment such as ventilators and surgical robots.



Precautions

Temperature Management: Heat will be generated when the motor is in operation, and an effective heat dissipation system must be designed to avoid performance degradation due to overheating.

Power Supply Stability: Maintain a stable power input to avoid the impact of voltage fluctuations on the motor.

Regular Maintenance: It is necessary to regularly check the vulnerable parts of the motor, such as brushes and bearings, to ensure long-term stable operation.

Control Precision: A precise controller is crucial for the rotational speed and torque of the motor.

Electromagnetic Compatibility: Since the motor may generate electromagnetic interference, appropriate shielding and grounding measures should be considered during the design.

Load Matching: When selecting a motor, fully consider the load requirements to ensure that the torque and inertia of the motor match.



If you are interested in the 106160 brushless motor for electric surfboard or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

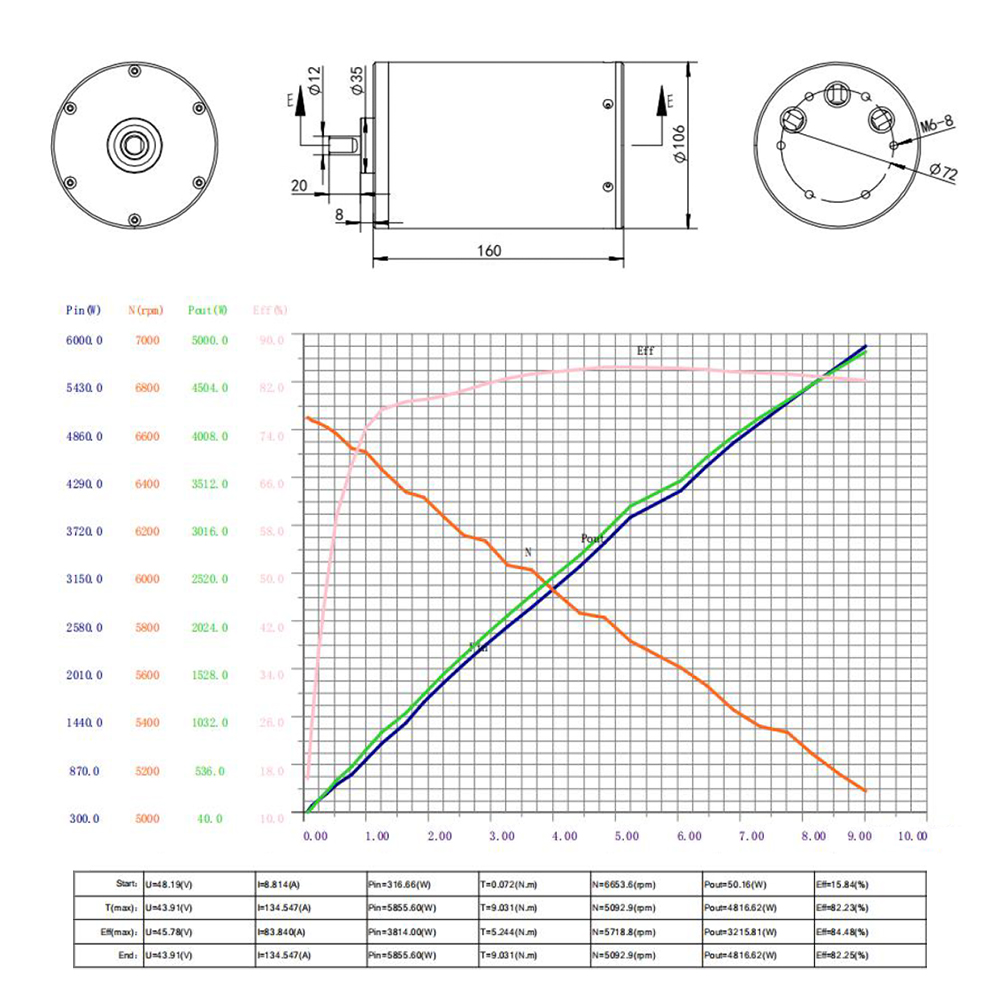

Product model 106160
Construction 18N6P
Number Phases 3
Dynamic balance standard <15mg
Net Weight 5500g
Sensored or Sensorless Sensored
Dimension Φ106x160mm
Motor type Inrunner
Working Voltage 48-84V(12-20S)
Rated Voltage 72V
RPM/V 145KV
No Load Current 5.5A
Terminal resistance 13.2mΩ
Torque Constant 0.62N.m/A
PM 9300rpm/min
Rated Current 120A
Rated Torque 7.6N.m
Rated Power 9000W
ESC 400A
Max Current 350A (10S)
Max Torque 21.5N.m (10S)
Max Power 20000W (72V 10S)
Max Efficiency 85%
Max RPM 13000rpm/min
Coil insulation test 500V
Ambient temperature -20~85℃
Max bearing speed 17000rpm/min
Radial clearance <0.02mm
Cooling device Water-cooling
Axial clearance <0.1mm
Shaft Dimension Φ12mm
Axial load dynamic 12N.m
Ingress protection IP57
