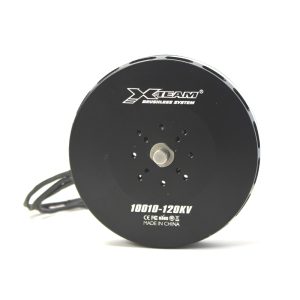

10010 Brushless motor for agriculture drone

Description

The 10010 Brushless motor for agriculture drone is a brushless DC motor specifically designed for high-performance applications. Its outstanding performance and robust structure make it an ideal choice for various fields such as drones, robots, and power tools. While providing high power output, it can well adapt to the requirements of limited space, offering high application flexibility.

Performance Parameters

Model and Compatibility: XTA10010, supports 10-12S lithium polymer batteries, and is compatible with a rotational speed of 120KV (120 revolutions per minute corresponding to each volt of voltage).

No-load Current: 0.9A (at 7.4V), with low-energy consumption standby to enhance the system’s endurance.

Maximum Power: 3000W (instantaneous peak value), with a strong continuous output capacity, suitable for short-term high-load requirements.

Weight: 498g (aluminum alloy housing, and the power-to-weight ratio reaches 6.02W/g).

Structural Features

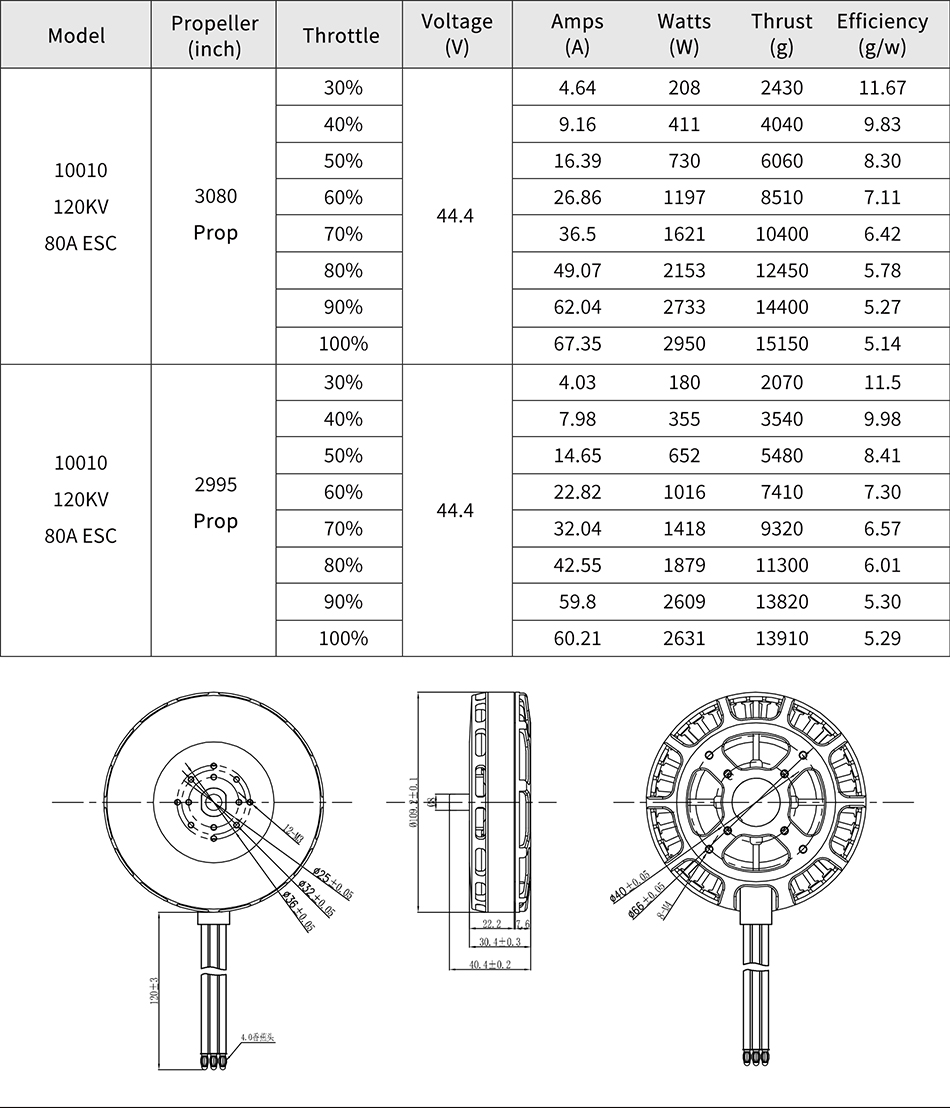

Compact Design: The motor has dimensions of Φ109.2×30.4mm and weighs only 498g, making it easy to install and carry.

Multiple Specifications of Mounting Holes: The rotor provides three specifications of mounting holes, namely Φ25mm 4xM3, Φ32mm 4xM3, and Φ36mm 4xM3. The stator provides two specifications of mounting holes, Φ40mm 4xM4 and Φ66mm 4xM4, to meet the needs of different application scenarios.

High Efficiency: Adopting advanced brushless DC technology, the motor has high efficiency, low energy consumption, and smooth operation.

Application Fields

The 10010 Brushless motor for agriculture drone is widely used in fields such as drones, aeromodels, robots, and power tools. Its high performance and reliability enable these devices to operate more efficiently and meet the requirements of various complex tasks.

Precautions

Power Supply Voltage: Please ensure to use a power supply that matches the rated voltage of the motor to avoid damaging the motor or affecting its performance.

Firm Installation: When installing the motor, make sure that all screws and connectors are firmly tightened to prevent loosening or falling off during operation.

Operating Environment: Do not use the motor in wet, flammable, or explosive environments to ensure safety.

Heat Dissipation Measures: When using the motor continuously for a long time, pay attention to the heat dissipation situation of the motor. If necessary, take additional heat dissipation measures to avoid performance degradation or damage caused by overheating.

If you are interested in the 10010 Brushless motor for agriculture drone or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com
