In the world of high-speed machinery, managing heat generation is a critical challenge. Coreless motors have emerged as a revolutionary solution, especially for applications that require high efficiency and minimal heat buildup. These motors are particularly suited for devices that demand sustained high speeds while maintaining a cooler operation. X Team is at the forefront of this technology, producing coreless motors that excel in high-speed environments and significantly reduce heat generation. In this blog, we’ll explore how coreless motors achieve this and the role components like the stator and stator winding play in ensuring performance. X Team designs motors with these innovations to meet the needs of a wide range of industries.

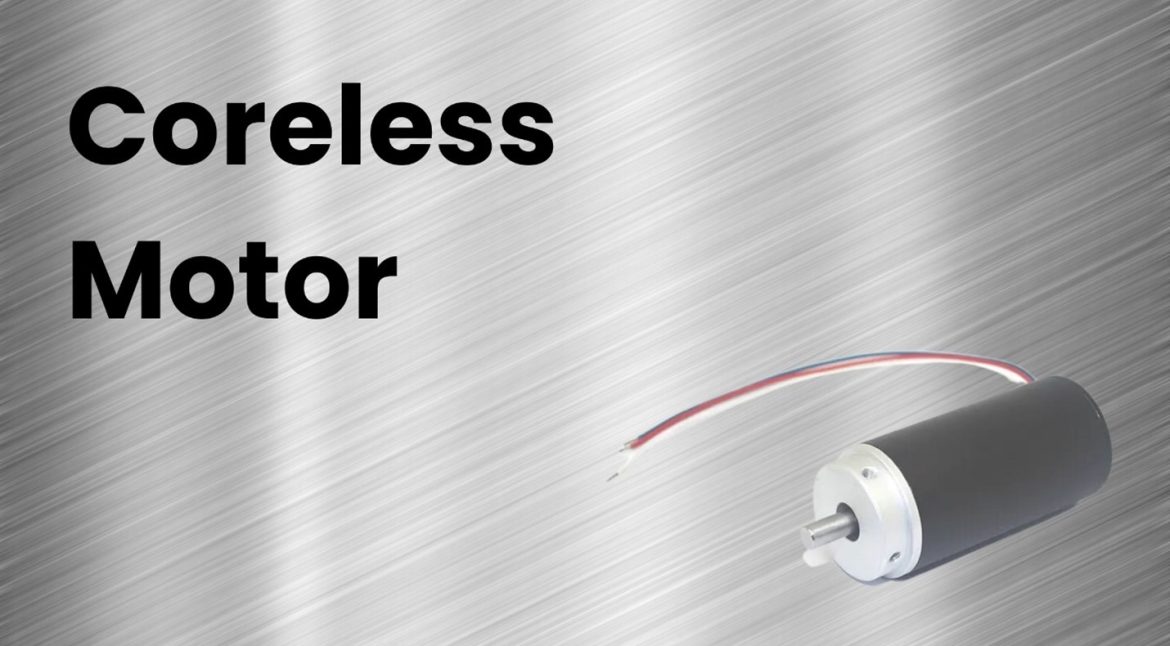

What Are Coreless Motors?

A coreless motor is a type of electric motor that, unlike traditional motors, does not have an iron core in its rotor. This design eliminates the losses caused by eddy currents in the iron core, which are a significant source of heat in conventional motors. The absence of an iron core in coreless motors allows them to operate at higher speeds while generating less heat, making them ideal for high-performance applications.

The stator in a motor remains a critical part of the design, even in coreless motors. While the rotor is coreless, the stator still houses the stator winding, which generates the magnetic field required for the motor’s operation. The reduced weight of the coreless motor’s rotor also contributes to its lower heat generation, allowing it to maintain higher speeds for extended periods. This makes X Team coreless motors highly effective for high-speed applications.

Role of Stators and Windings in Coreless Motors

The stator and its windings in a motor play a pivotal role in how efficiently a coreless motor operates. In traditional motors, the stator winding generates the magnetic field that interacts with the rotor. However, in a coreless motor, the design of the stator winding becomes even more important because it must ensure optimal efficiency without the help of a heavy iron core.

The electric motor winding in a coreless motor is often made from copper, which is known for its excellent conductivity. These windings are typically arranged in a way that maximizes the motor’s efficiency while minimizing heat. By carefully designing the stator and its windings, X Team ensures that their coreless motors generate less heat even during prolonged high-speed operation.

Why Heat Generation is a Concern in High-Speed Applications

Heat generation is a major concern in high-speed applications because excess heat can reduce the performance and lifespan of a motor. As the motor’s speed increases, so does the heat generated by its components, especially in motors with iron cores. This heat can cause wear and tear on the motor’s parts, leading to breakdowns and inefficiencies over time.

In a coreless motor, the elimination of the iron core significantly reduces this heat generation. Without an iron core, there are no eddy currents, which are a major contributor to heat in traditional motors. The stator on a motor in a coreless design is also optimized to reduce resistance in the stator winding, further decreasing the amount of heat produced. X Team coreless motors are designed to minimize these heat losses, ensuring reliable performance in high-speed applications.

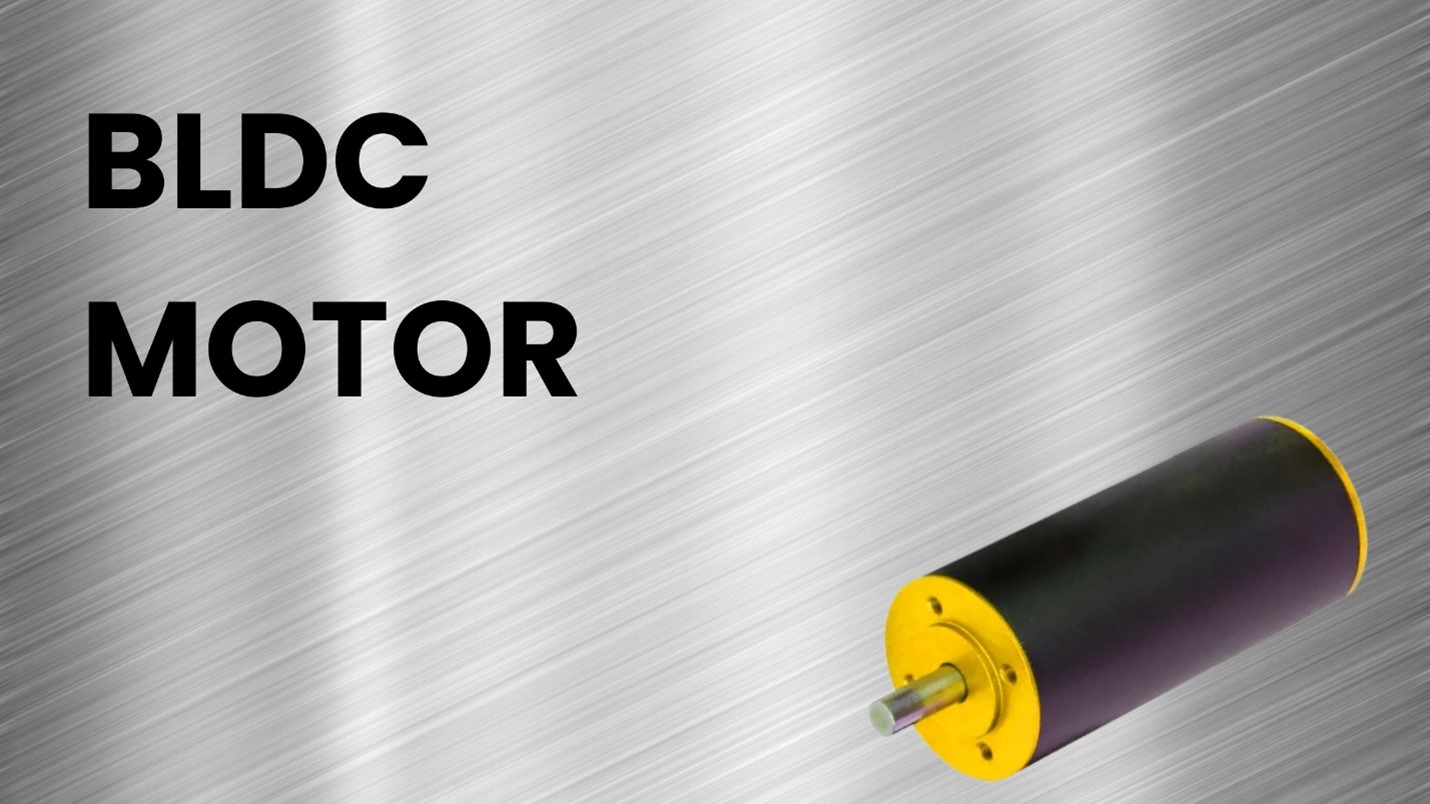

BLDC Motors and Coreless Designs

Brushless DC motors (BLDC motors) are known for their efficiency and low maintenance requirements, and coreless motors take these advantages a step further. In a BLDC motor, the stator generates a magnetic field, while the rotor spins due to the interaction between this field and the permanent magnets on the rotor. In a coreless motor, the absence of an iron core in the rotor makes the motor even more efficient, as there is less resistance and heat generation.

The stator of a motor in a coreless BLDC design works similarly to that in a traditional BLDC motor, but with optimized stator windings to handle high speeds more efficiently. X Team produces coreless motors that incorporate advanced stator winding techniques, ensuring that the motor performs at its best even under demanding conditions. These motors are also used in RC BLDC motor applications, where high speeds and reduced heat are critical.

PMSM and Coreless Motor Technology

In addition to BLDC motors, PMSM (Permanent Magnet Synchronous Motors) also benefit from coreless motor technology. In a PMSM, the stator winding generates a rotating magnetic field that interacts with permanent magnets on the rotor, creating motion. By removing the iron core in the rotor, coreless motors in PMSM designs can achieve higher speeds with less heat generation.

The motor stator in a PMSM or BLDC coreless motor is designed to minimize losses, ensuring that the motor can run at high speeds for extended periods without overheating. X Team motors, with their cutting-edge coreless designs, are able to maintain a cool operation, making them suitable for high-speed applications across a variety of industries.

Applications of Coreless Motors in High-Speed Environments

Coreless motors are used in a wide range of high-speed applications, from precision medical devices to industrial automation systems. One of the main benefits of coreless motors in these settings is their ability to minimize heat generation while maintaining high speeds. This is especially important in applications where excessive heat can damage sensitive components or reduce the accuracy of the motor.

For example, in the RC industry, RC BLDC motors benefit greatly from coreless technology. These motors allow remote-controlled vehicles, drones, and aircraft to achieve high speeds without overheating, ensuring consistent performance during extended use. The stator motor in these designs is carefully optimized to handle the high currents required for these applications without generating excessive heat.

In industrial applications, coreless motors are used in high-speed machinery where precision and reliability are critical. The stator and stator winding in these motors are designed to minimize resistance and heat, allowing the machinery to operate continuously at high speeds without downtime due to overheating.

Benefits of X Team Coreless Motors

X Team has established itself as a leader in coreless motor technology, producing motors that excel in high-speed environments. One of the main advantages of X Team coreless motors is their ability to minimize heat generation, which is essential for maintaining performance and longevity. By optimizing the design of the stator and the stator winding, X Team ensures that their motors run cooler and more efficiently than traditional motors.

Another benefit is the lightweight design of coreless motors. Without an iron core, these motors are lighter, which reduces the overall load on the system. This is especially important in applications like drones, where every gram of weight affects performance. The stator in a motor plays a key role in maintaining this balance between weight and efficiency.

Finally, X Team coreless motors are designed for durability. By reducing heat generation, these motors experience less wear and tear over time, leading to a longer operational life. This makes them a cost-effective solution for high-speed applications that require reliable, long-term performance.

Conclusion

Coreless motors are transforming high-speed applications by significantly reducing heat generation and improving overall efficiency. The innovative design of the stator and stator winding in these motors ensures that they can handle high speeds without overheating, making them ideal for industries ranging from RC applications to industrial automation. X Team continues to push the boundaries of coreless motor technology, offering reliable and efficient solutions for even the most demanding environments.

To learn more about how X Team coreless motors can improve the performance of your high-speed applications, visit our website and explore our range of innovative products.
