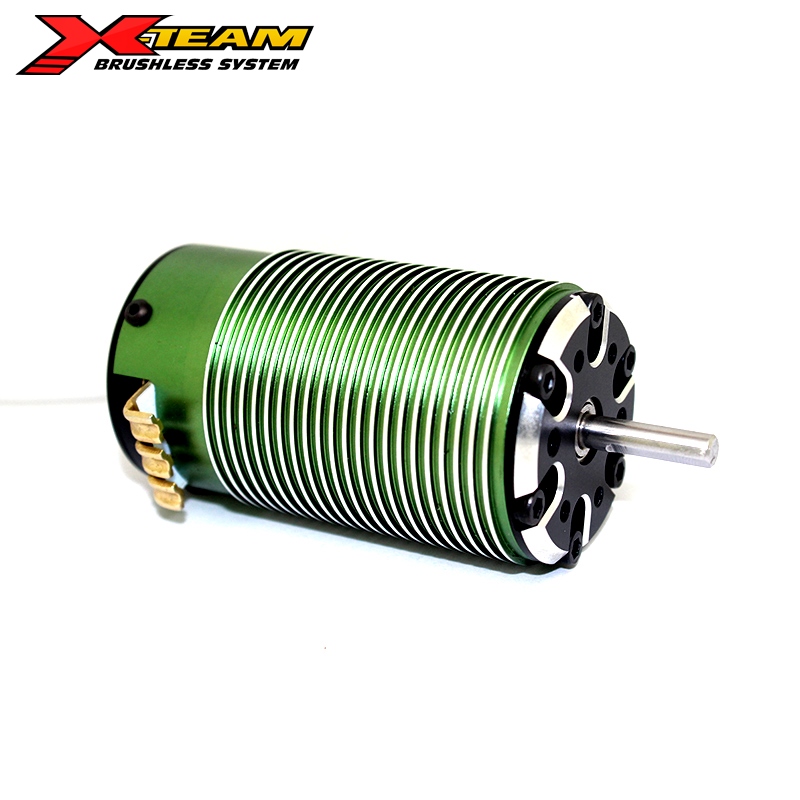

Brushless motors (BLDC motors) are widely used in power tools, electric vehicles, home appliances, and robots for their high efficiency, reliability, and low maintenance costs. However, many users may encounter excessive vibration when using brushless motors. Vibration not only affects the stability of the equipment, but also causes the motor’s performance to deteriorate or even damage the motor. In order to ensure that the motor runs smoothly for a long time, it is crucial to promptly troubleshoot and fix the vibration problem.
- Causes of brushless motor vibration
The causes of brushless motor vibration are more complicated and can usually be attributed to the following aspects:
1) Unbalanced rotor
If the rotor of a brushless motor is unbalanced, it will generate centrifugal force at high speeds, causing vibration. Unbalanced rotors may be caused by manufacturing defects, uneven wear during use, or improper installation.
2) Damaged or worn bearings
Bearings are important components in the operation of motors. In the case of long-term operation or lack of sufficient lubrication, bearings are prone to wear or damage. Damaged bearings will cause the rotor to not rotate smoothly, resulting in vibration.
3) Uneven electromagnetic force
The drive circuit of a brushless motor generates electromagnetic force through electronic commutation. If the current or voltage distribution is uneven, or the commutation process is not smooth, it will cause an imbalance of electromagnetic force, resulting in vibration.
4) Improper installation
If the motor is installed unevenly or the connection with the drive device is not firm, it will cause abnormal vibration of the motor when it is working.
5) Unbalanced external load
If the load driven by the motor is uneven or the design is unreasonable, it will also cause unbalanced force when the motor is working, causing vibration.
- Steps to troubleshoot vibration problems
To fix the vibration problem of the brushless motor, you first need to conduct a detailed investigation to find out the specific cause of the vibration. The troubleshooting steps are as follows:
1) Check the balance of the rotor
Checking the balance of the motor rotor is the first step in troubleshooting vibration problems. Use a professional dynamic balancing instrument to balance the rotor to see if there is any imbalance. If the rotor is unbalanced, you can restore its balance by adding counterweights or adjusting the mass distribution of the rotor.
2) Check the bearing condition
Check whether the bearing is worn or damaged. You can manually turn the motor shaft to feel whether it is smooth, whether there is any abnormal noise or jamming. If you find that there is a problem with the bearing, you need to replace it in time to ensure that the motor rotor can rotate smoothly.
3) Check the drive circuit and current waveform
Use an oscilloscope to detect the current waveform of the motor drive circuit to ensure that the current is evenly distributed and avoid excessively high or low voltage pulses that cause unbalanced electromagnetic force. If the current waveform is abnormal, it may be necessary to adjust the control algorithm of the drive circuit or replace the driver.
4) Check the connection between the motor and the load
Check the connection between the motor and the load to ensure that the motor and the load are firmly connected. Loose screws or poor connections may cause additional vibration during the transmission process. Retighten the connection parts to ensure that they are firm and reliable.
5) Check the uniformity of the external load
Check whether the load driven by the motor is evenly distributed, especially in equipment such as power tools or robots, where uneven loads may be the source of vibration. Try to ensure that the mass and shape of the load are symmetrical to reduce vibration caused by uneven loads.
- Measures to repair vibration problems
After the cause of the vibration is found, the following repair measures can be taken according to different situations:
1) Perform rotor balancing
If it is confirmed that the vibration is caused by rotor imbalance, it can be repaired by dynamic balancing. Adjust the counterweight on the rotor until the mass of the rotor is evenly distributed, thereby reducing the vibration caused by centrifugal force.
2) Replace or lubricate the bearings
If the vibration is caused by bearing wear or damage, replace the bearings in time and keep the bearings in good lubrication condition. Maintain the motor bearings regularly to prevent unnecessary vibration caused by excessive friction.
3) Optimize the drive circuit
If the vibration is caused by uneven electromagnetic force, you can optimize the motor drive circuit, adjust the drive frequency, reduce current fluctuations, and ensure a smooth supply of current. You can also upgrade the driver and use a more precise controller to control the motor’s commutation process.
4) Ensure that the motor and load are firmly connected
Regularly check the connection between the motor and the load to avoid vibration caused by loose connections. If the connection is found to be loose, it should be reinforced in time to ensure the stable operation of the motor.
5) Optimize the load design
For uneven external loads, consider optimizing the load design to make its mass distribution more balanced and avoid vibration problems caused by the load.
The vibration problem of the brushless motor not only affects the performance of the equipment, but may also cause damage to the motor and other components. Therefore, it is crucial to troubleshoot and repair the vibration problem in a timely manner. From checking the rotor balance, bearing status, electromagnetic force distribution, to ensuring the uniformity of motor installation and load, gradually eliminating possible causes and taking corresponding repair measures can effectively reduce vibration and ensure the smooth operation of the brushless motor. Through scientific investigation and regular maintenance, the vibration problem of the motor can be effectively solved, thereby improving the reliability and service life of the equipment.
