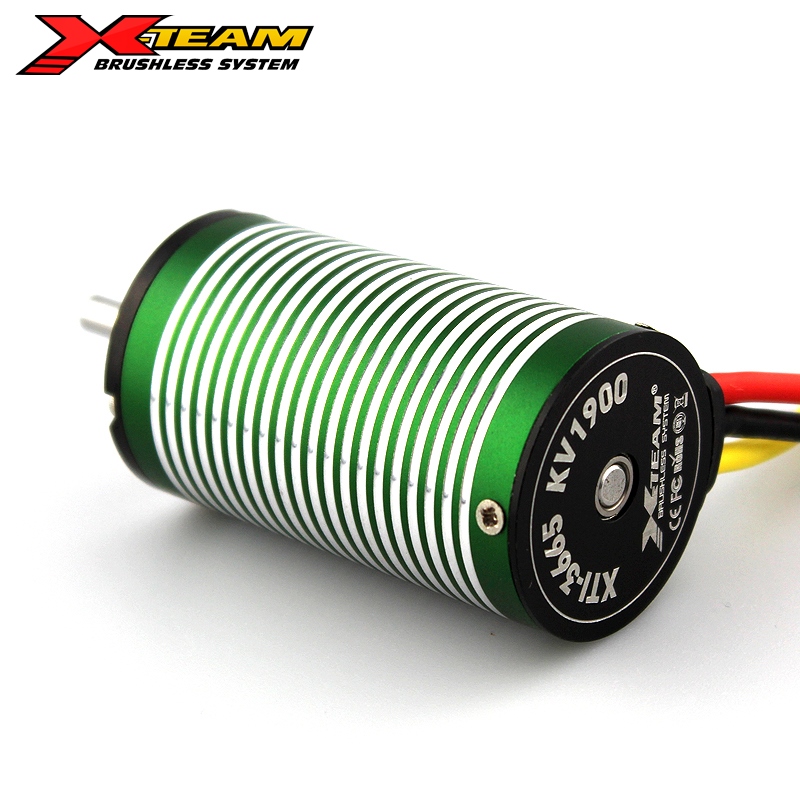

Brushless motors (BLDC motors) have been widely used in modern industrial and household appliances due to their advantages such as high efficiency, reliability and long life. However, in actual use, some users may encounter abnormal acceleration or deceleration of brushless motors, which not only affects the performance of the equipment, but also increases the risk of system failure. In order to ensure the smooth operation and accurate response of the motor, it is particularly important to adjust the acceleration and deceleration process of the brushless motor in time. X-TEAM will explore the reasons for abnormal acceleration or deceleration of brushless motors and provide some effective adjustment tips and methods.
- Common reasons for abnormal acceleration or deceleration of brushless motors
The reasons for abnormal acceleration or deceleration of brushless motors are usually closely related to factors such as the motor itself, the drive system and the external load. The main reasons are as follows:
1) Drive circuit or controller problems
The acceleration and deceleration of brushless motors are adjusted by electronic controllers. If there is a fault or mismatch in the drive circuit, it may cause the motor to respond slowly, accelerate unstablely or decelerate too slowly.
2) Unstable voltage and current supply
The acceleration and deceleration process of the motor depends on a stable voltage and current supply. If the power supply is unstable or the current fluctuation is too large, the running state of the motor may be unstable, thus affecting the acceleration and deceleration effect.
3) Improper PID control parameters
The drive of the brushless motor usually adjusts the speed and acceleration through the PID (proportional-integral-differential) control algorithm. If the PID control parameters are set improperly, it may cause the acceleration to be too slow, the deceleration to be too fast, or the vibration phenomenon.
4) Uneven or heavy load
If the load driven by the motor is too large or the load distribution is uneven, the motor may not run smoothly when accelerating or decelerating, resulting in abnormal acceleration or deceleration process.
5) Motor fault
Internal faults of the motor, such as winding short circuit or brush damage, may also cause abnormal performance of the motor when accelerating or decelerating.
- Tips and methods for adjusting the acceleration and deceleration of brushless motors
For the above reasons, the following are some effective adjustment tips and methods:
1) Check and optimize the drive circuit
Ensure that the drive circuit and controller are working properly to avoid abnormal acceleration or deceleration of the motor due to circuit failure. You can use an oscilloscope to check the motor control signal to ensure the stability and accuracy of the control signal. If the controller is not set properly, the parameters of the drive circuit can be adjusted according to the motor specifications and load characteristics to optimize the acceleration and deceleration process of the motor.
2) Stabilize the power supply voltage and current
Brushless motors have high requirements for power supply, especially during acceleration and deceleration. Ensure that the power supply voltage is stable and avoid excessive voltage fluctuations. Using an appropriate power supply filter or voltage regulator can effectively avoid abnormal acceleration or deceleration caused by unstable power supply. In addition, check whether the current supply is stable, ensure that the current matches the motor load, and avoid overload or insufficient current.
3) Adjust PID control parameters
The role of the PID controller in the acceleration and deceleration of brushless motors is crucial. Proper adjustment of the PID control parameters can effectively improve the acceleration and deceleration response of the motor. Specifically:
Proportional parameter (P): The reaction speed of the control system to errors. Increasing the P value can increase the acceleration or deceleration speed, but too high a value will cause the system to overshoot.
Integral parameter (I): Used to eliminate static errors and avoid system oscillation near the target speed.
Differential parameter (D): Used to reduce overshoot and improve system stability.
According to actual needs, adjust these parameters to make the acceleration and deceleration process of the motor smoother.
4) Optimize load design and distribution
Check the uniformity and rationality of the motor load. If the load is too heavy or uneven, it may cause the motor to accelerate difficultly or decelerate slowly. You can consider reducing the burden on the motor by reducing the load weight or adjusting the uniform distribution of the load. In addition, avoiding instantaneous large load changes will also help the motor maintain smooth acceleration and deceleration.
5) Regularly check the motor and drive system
Regularly maintain and inspect the motor and drive system to ensure that the motor itself is not faulty. Check whether there are problems such as winding damage and loose wiring inside the motor, and troubleshoot in time to ensure the normal operation of the motor.
The acceleration and deceleration process of the brushless motor directly affects the performance and user experience of the equipment. When encountering problems with abnormal acceleration or deceleration, it is necessary to investigate from multiple aspects. Optimizing the drive circuit, ensuring stable power supply, adjusting PID control parameters, checking load design, and regularly maintaining the motor itself are all effective ways to ensure smooth acceleration and deceleration of the motor. Through the above adjustment techniques and methods, the response speed and stability of the motor can be significantly improved, the service life of the equipment can be extended, and the equipment can be ensured to operate in an efficient state.
